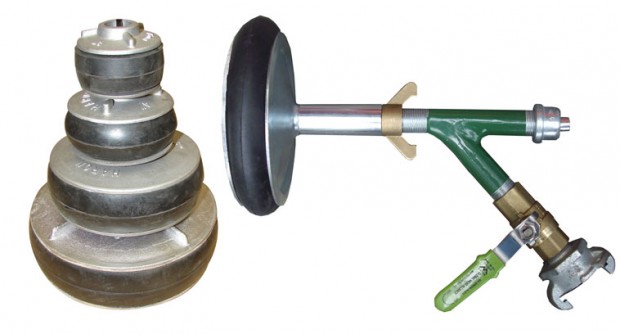

PRK-400
Placeholder

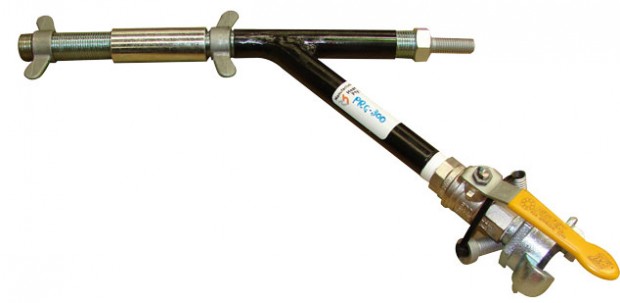

PRG-300
Placeholder

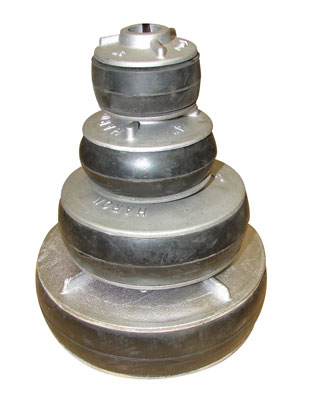

CSO Conduit Seal Offs
  • Thumbnails
  • Thumbnails
  • Thumbnails

Manufacturer: Hearthill (see all Hearthill Products)
Product type: Cable Blower

Hearthill CSO Series Conduit Seal Offs, PRG-300 Roping Gun & PRK-400 Conduit Roping Gun Kit

The air roping system is used when long distances of conduit or sub duct require a draw line to be installed.

  • A standard compressor of around 175cfm/4.9cm3 or more is suitable for this job.
  • The rubber seal offs are compressed inside the end of the conduits to avoid blow back and if further grip to the conduit is required additional rubber seal offs can be added to increase the hold on the ID of the conduit due to back pressure created with distance and water head pressure.
  • Hand gun is complete with stainless steel ball valve, type-B connector and 3 x rope grommets to suit 3, 5 and 7mm draw lines.
  • The connecting claw to the compressor hoses has the required safety feature for the locking clips.
  • There are a series of seal offs ranging from 40-200mm whilst larger can be manufactured upon request.

NOTE: CSO Series Conduit Seal Offs & PRG-300 Roping Gun *Sold Separately* (Roping Gun pictured above with seal off - not included)

Specifications

CSO Series Conduit Seal Offs

Model No. For Conduit (mm)
CSO-040   40
CSO-050   50
CSO-063   63
CSO-080   80
CSO-100   100
CSO-125   125
CSO-150   150
CSO-200   200

PRG-300 Roping Gun

Model No. Description
PRG-300 Pressure Roping Gun Only

PRK-400 Conduit Roping Gun Kit

Model No. Description
PRK-400

Conduit Roping Gun Kit - consists of:

  • 1 x PRG-300 Pressure Roping Gun
  • 3 x Rope Grommets
  • CSO-050, CSO-080,
    CSO-100, CSO-125,

    & CSO-150 Conduit Seal Offs

Click on the link to download more information on the Hearthill CSO Series Conduit Seal Offs, PRG-300 Roping Gun & PRK-400 Conduit Roping Gun Kit.
