Flange Aligner

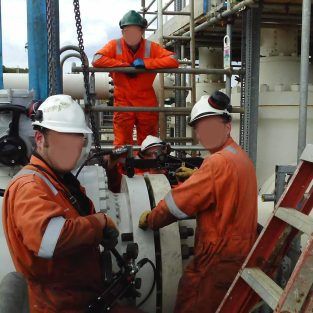

Flange Alignment tools can be used to align or re-align flange joints during pipework construction, commissioning or during routine maintenance. Usually tool is attached to the flange joint where misalignment is at its greatest and then used to push and pull the flanges into correct alignment. Need assistance? Refer to the bottom of the page for the FLANGE GURU link.

Alternate terminology: Flange Joint Alignment, Flange Joint Aligning, Pipe End Aligner / Aligning Tool.

Solution Equalizer Flange Alignment: Case Study - Extended Reach Tool

This notorious flange-joint was difficult for the operator to align based on the longer th...
