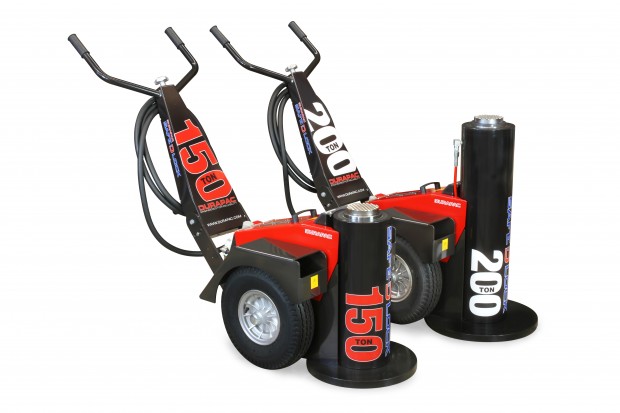

Safe D Lock 150 US Ton and 200 US Ton High Tonnage Jack & Stand
Placeholder

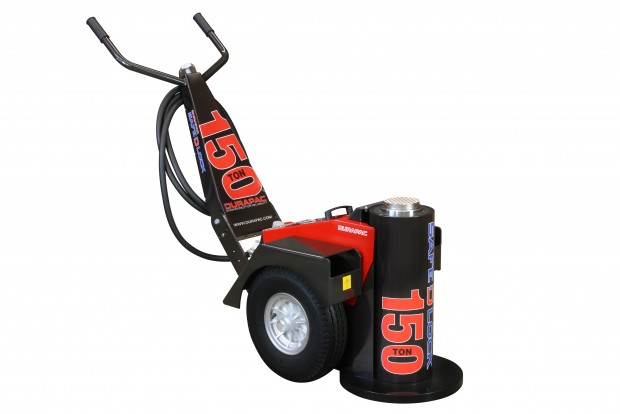

Safe D Lock 150 US Ton High Tonnage Jack & Stand
Placeholder

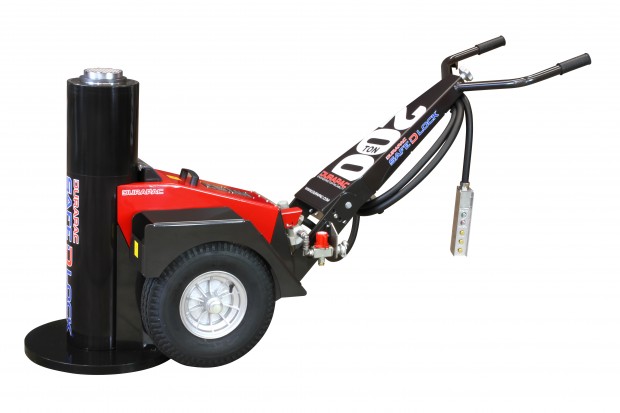

Safe D Lock and 200 US Ton High Tonnage Jack & Stand
Placeholder
Safe D Lock Jack & Stand in Operation
Placeholder
Safe D Lock Closeup of Air Motor & Pump
Placeholder
Safe D Lock Battery Drive
Placeholder
Safe D Lock Powerdrive Control
Placeholder
Safe D Lock Powerdrive Chain Drive
  • Thumbnails
  • Thumbnails
  • Thumbnails
  • Thumbnails
  • Thumbnails
  • Thumbnails
  • Thumbnails
  • Thumbnails

Manufacturer: Durapac (see all Durapac Products)
Product type: Hydraulic Jack

Durapac SDL Safe-D-Lock High Tonnage Jack & Stand

The Safe D Lock jack is a revolutionary design with the operators’ safety paramount. It is a lifting jack and rated vehicle jacking stand for heavy mining vehicles - dump trucks, haul trucks, whatever you call them.

  • Australian designed and built to meet AS/NZS 2693:2007 standard for vehicle jacks, it also meets AS/NZS 2538:2004 standard for vehicle support stands.
  • The jack uses patented oil-bathed internal locking quadrants that are constantly energised during the lifting process to give a fail safe operation.
  • This locking mechanism automatically engages in the unlikely event of a hydraulic failure.

The Safe D Lock jack is compact and portable and is the perfect choice for the workshop or service vehicle.

  • Capacity: 70 tonne (77 US ton) / 100 tonne (110 US ton) / 135 tonne (150 US ton) / 181 tonne (200 US ton).
  • Stroke Range: 400 - 685 mm.
  • Hydraulic system is powered by a Gast® 3.9 kW air motor.
  • Lock indicators confirm ‘locked’ and ‘unlocked’ status.
  • Dual hydraulic locking valves for added safety.
  • Load lowering counter balance valve for smooth controlled lowering of load.
  • Patented fail safe spring loaded mechanical locking system.
  • Oil-bathed and totally enclosed to prevent contamination.
  • Can be locked in 13mm increments.
  • Lifting point allows easy forklift access with a 160mm max. tine width.
  • Aluminium remote pendant with mounted lock and unlock indicators for added safety.
  • Tyres with alloy rims - heavy duty, polyurethane filled, puncture-proof, large rolling diameter (450mm).
  • Mechanical quadrant locks designed and tested to hold a minimum 3 x rated jack capacity without failure.

Durapac SDL Safe-D-Lock Jack with Powerdrive

The addition of the Powerdrive transforms the SAFE D LOCK jack into a self-propelled lifting jack and rated vehicle jacking stand for heavy mining vehicles.

  • The Safe D Lock jack + POWERDRIVE utilises dual independent DC motors driving the wheels via a robust chain and sprocket design.
  • Features include soft start, forward and reverse handle mounted switches, dead-man triggers and two M18 Red Lithium™ 5 Ah rechargeable batteries.
  • Each Powerdrive unit is supplied with two M18 Red Lithium™ batteries and one 230 VAC charger.
  • Dual independent drives - forward & reverse independant drive on each handle.
  • Independent deadman switches for easy manoevering and safety.
  • Three position toggle switches (Forward, Neutral, Reverse) IP65 rated for all weather environments.

Please download the catalogue page for more information on the Durapac SDL Safe D Lock High Tonnage Jack & Stand.

Features

  • Australian designed and built.
  • Lifting jack and rated vehicle jacking stand for heavy mining vehicles.
  • Tilt adjustable handle
  • Modular design
  • Serrated load cap
  • The Safe-D-Lock jack + POWERDRIVE can self-propel up workshop slopes of 5 degrees
