alkitronic® E-PG Electric Torque Wrench/Torque Multiplier

Applications

alkitronic® E-PG, 2-speed torque multiplier for torques from 370 Nm to 10,000 Nm (270 ft.lbs- 7,375 ft.lbs).

The indestructible workaday torque tool is used to loosen or tighten heavy-duty bolted connections with high on-the-job safety and short assembly times.

Permanently higher joint quality, compared to ratchet torque tools or tools with impact mechanism, by continuous rotation of the square drive.

Efficient operation with short fastening cycles: Fast gear for run down and power gear for highest torques and precision.

Advantages

Ease of operation: Fast switching direction of rotation as well as speedchanges. Wide torque range, choice from seven torque values pro gear.

Operator convenience and health-consideration: Lightweight ergonomically designed tool. The 360 degree rotating handle ensures convenient working. None of the reaction forces are transferred to the operator.

Smart processor-controlled, switch-off electronics for consistently precise reproduction of the pre-selected torque.

alkitronic® Specials

Break-proof, impact-proof and resistent to corrosion: Robust Motor housing made of special polymer.

Proven modular high-performance gears, produced in a chipfree high-precision process.

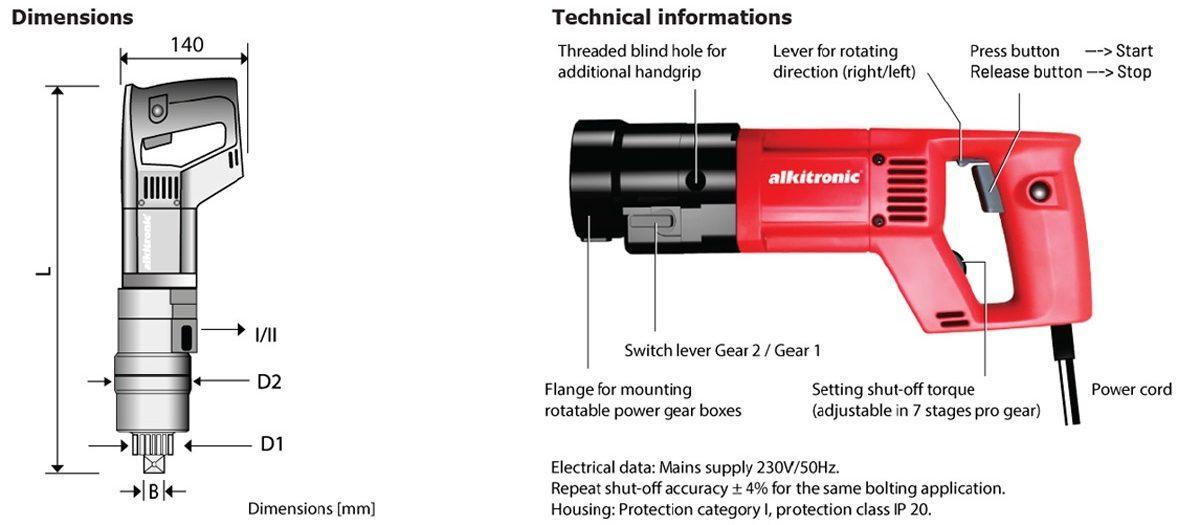

Technical Data: Models alkitronic® E-PG

*( When loosening bolts, a higher torque (up to 20 %) may be necessary (release torque). We will be pleased to help you with your choice. **) Torque reaction arm
