Durapac Hydraulic: 3,2,1 Bridge Launch

RD-15032 Double Acting 150 ton Collar Thread Cylinder
RD-15032 Double Acting 150 ton Collar Thread Cylinder

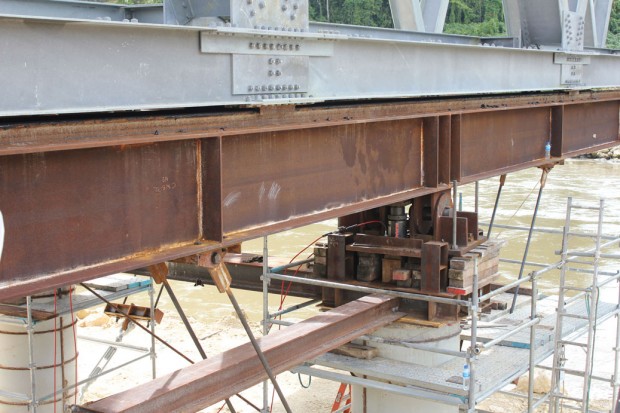

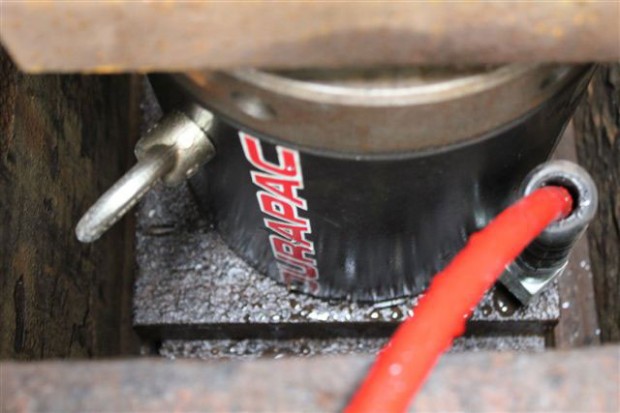

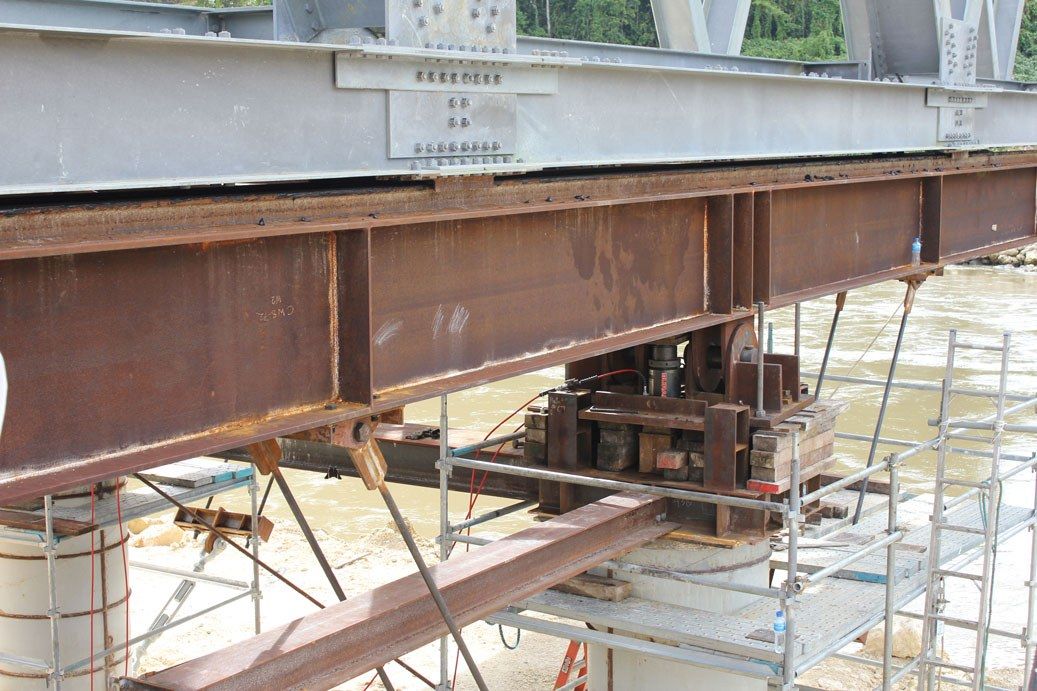

This project was for a bridge launching system where 4 by RSLC-1504 Durapac cylinders were required to jack up the bridge to align to the joining abutment.

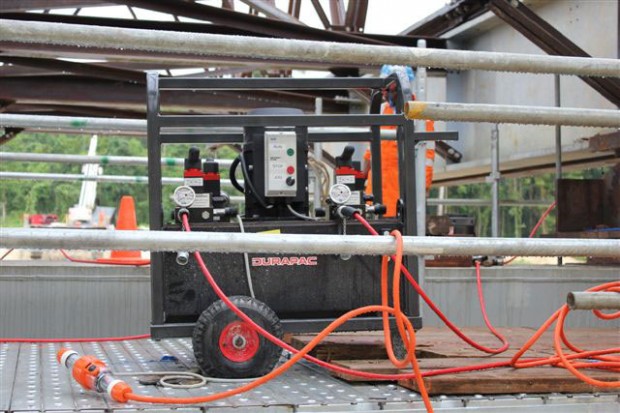

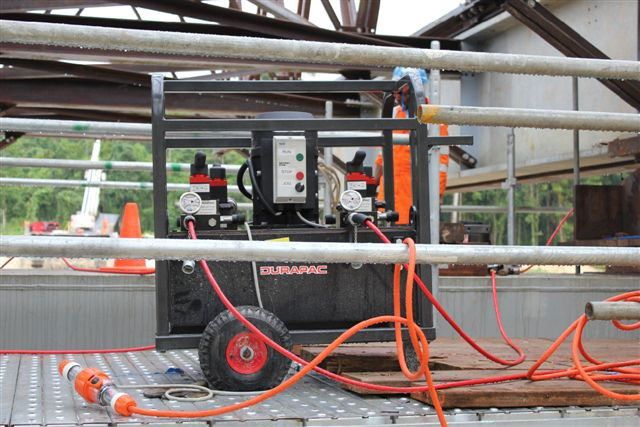

A Durapac split-flow pump PEMS4054 was used to synchronise the jacking of 4 cylinders to ensure correct alignment.

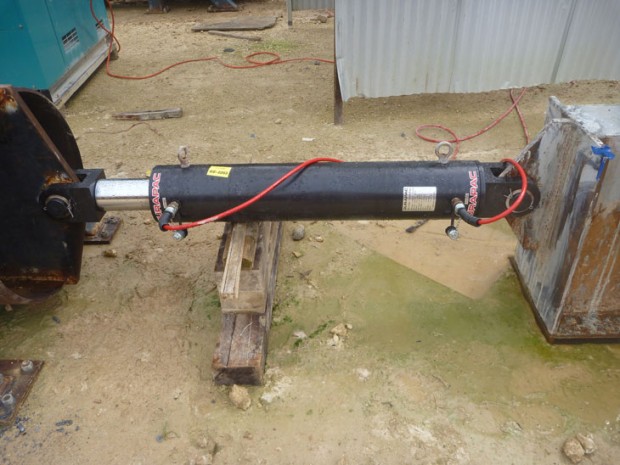

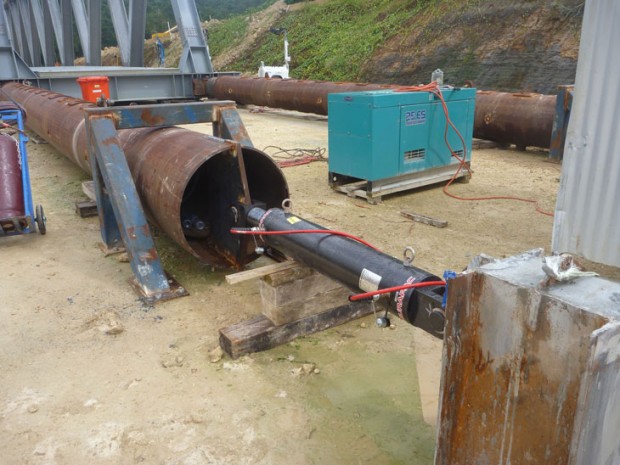

Two Durapac RD-15032 pushing cylinders were used to push the bridge system out over the temporary piers. Again the split-flow pump was used to control the guidance of the bridge section.

The Durapac split-flow pump PEMS4054 was also used to correct misalignments during the launching phase.

RSLC-1504 Single Acting Load Return 150 ton Locking Collar Jack
RSLC-1504 Single Acting Load Return 150 ton Locking Collar Jack
PEMS4054 Split Flow Pump
PEMS4054 Split Flow Pump
RD-15032 Double Acting 150 ton Collar Thread Cylinder
RD-15032 Double Acting 150 ton Collar Thread Cylinder
