POWERSTRESS 10T Mono Strand Stressing Jacks

POWERSTRESS 10T Mono Strand Stressing Jacks

Powerstress Mono Strand Stressing Jacks are front gripping jacks suitable for 12.7 & 15.2mm strand.

  • Easy to insert jack onto a strand in constricted space
  • Useful for removing slackness in long strands
  • Used for rock bolting and post-tensioning operations

Features

  • High-quality jack with chrome piston, centre tube, bronze ram follower, bronze gland nut inlay and high-quality seals
  • Rear-facing pressure and return ports 3/8 NPT Female
  • Fitted with Cejn flat face snap couplers and aluminium dust caps
  • Supplied with one set of wedges 12.7mm (15.2mm also available upon request)
  • All spares available at a reasonable price
  • Factory tested to ISO 10100 specification with ISO 9001 traceability

Specifications

Model No.Capacity
(ton/kn)
StrokeWorking Pressure
at Capacity
Effective Area
(cm²)
Weight with
Couplings (kg)
Weight w/o Couplings (kg)
CH106DA-PRE10/9815010T at 552 Bar18.148.37.85

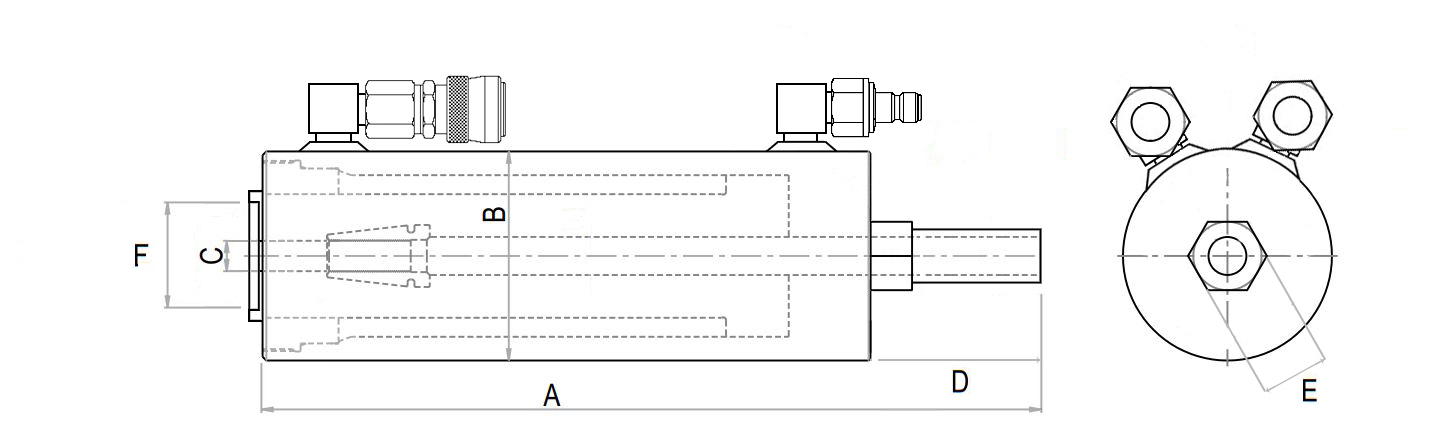

A (mm)B (mm)C (mm)D (mm)E (mm)F (mm)
38011021654542

Replacement Wedge Sets

Part No.Description
CH106-12.70.5" Wedges
CH106-15.20.6" Wedges

Click on the link to download more information on the POWERSTRESS 10T Mono Strand Stressing Jacks.
