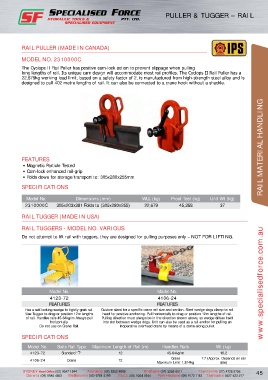

PULLER & TUGGER – RAIL – IPS
                                                                          PULLER & TUGGER – RAIL







           RAIL PULLER (MADE IN CANADA)

           MODEL NO. 2310000C

           The Cyclops II Rail Puller has positive cam-lock action to prevent slippage when pulling
           long lengths of rail. Its unique cam design will accommodate most rail profiles. The Cyclops II Rail Puller has a
           22,679kg working load limit, based on a safety factor of 2, is manufactured from high-strength steel alloy and is
           designed to pull 402 metre lengths of rail. It can also be connected to a crane hook without a shackle.



















           FEATURES                                                                                                   RAIL MATERIAL HANDLING
           • Magnetic Particle Tested
           • Cam-lock enhanced rail-grip
           • Folds down for storage/transport to: 305x280x255mm

           SPECIFICATIONS

             Model No.             Dimensions (mm)              WLL (kg)     Proof Test (kg)  Unit Wt (kg)
            2310000C      305x203x381 Folds to (305x280x255)     22,679          45,358            37

           RAIL TUGGER (MADE IN USA)

           RAIL TUGGERS - MODEL NO. VARIOUS

           Do not attempt to lift rail with tuggers, they are designed for pulling purposes only – NOT FOR LIFTING.













                       Model No.                                       Model No.                                      www.specialisedforce.com.au
                       4123-72                                         4106-24
                       FEATUREs                                        FEATUREs
            Has a self-locking wedge to tightly grab rail.   Custom sized for a specific crane rail size and section. Steel wedge dogs clamp to rail
            Use Tugger to drag or position 12m lengths   head for positive anchoring. Pull horizontally to drag or position 12m lengths of rail.
             of rail. Handles rails 45-64kg/m Always pull   Pulling direction must always be in the direction shown above, so wedge drives itself
                       horizontally.           into slot between wedge dogs. Unit can also be used as a rail anchor for pulling an
                   Do not use on Crane Rail.          inoperative overhead crane by means of a come-along puller.
           SPECIFICATIONS

             Model No.    suits Rail Type  Maximum Length of Rail (m)    Handles Rails           Wt (kg)
              4123-72       standard “T”              12                   45-64kg/m               18.2
                                                                             Crane        7.7 (Approx. Depends on rail
              4106-24          Crane                  12
                                                                       Maximum Limit 1,814kg       size)
