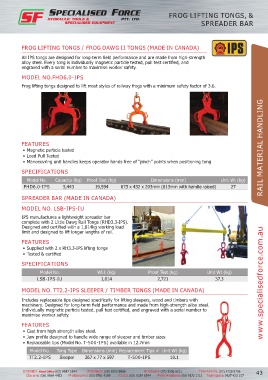

Page 53 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18
P. 53

TONGS – FROG LIFTING – IPS
                                                                            FROG LIFTING TONGS, &
                                                                                          SPREADER BAR





           FROG LIFTING TONGS / FROG DAWG II TONGS (MADE IN CANADA)

           All IPS tongs are designed for long-term field performance and are made from high-strength
           alloy steel. Every tong is individually magnetic particle tested, pull test certified, and
           engraved with a serial number to maximise worker safety.
           MODEL NO.FHD6.0-IPS

           Frog lifting tongs designed to lift most styles of railway frogs with a minimum safety factor of 3.6.














           FEATURES
           • Magnetic particle tested                                                                                 RAIL MATERIAL HANDLING
           • Load Pull Tested
           • Manoeuvring unit handles keeps operator hands free of “pinch” points when positioning tong
           SPECIFICATIONS

             Model No.    Capacity (kg)  Proof Test (kg)            Dimensions (mm)                Unit Wt (kg)
            FHD6.0-IPS       5,443         19,594      673 x 432 x 203mm (813mm with handle raised)     27

           SPREADER BAR (MADE IN CANADA)

           MODEL NO. LSB-IPS-IU
           IPS manufactures a lightweight spreader bar
           complete with 2 Little Dawg Rail Tongs (RHD3.3-IPS).
           Designed and certified with a 1,814kg working load
           limit and designed to lift longer lengths of rail.

           FEATURES
           • Supplied with 2 x RH3.3-IPS lifting tongs
           • Tested & certified
           SPECIFICATIONS
                   Model No.                WLL (kg)               Proof Test (kg)           Unit Wt (kg)
                  LSB-IPS-IU                  1,814                    2,721                     37.3                 www.specialisedforce.com.au

           MODEL NO. TT2.2-IPS SLEEPER / TIMBER TONGS (MADE IN CANADA)

           Includes replaceable tips designed specifically for lifting sleepers, wood and timbers with
           machinery. Designed for long-term field performance and made from high-strength alloy steel.
           Individually magnetic particle tested, pull test certified, and engraved with a serial number to
           maximise worker safety.

           FEATURES
           • Cast from high strength alloy steel.
           • Jaw profile designed to handle wide range of sleeper and timber sizes
           • Replaceable tips (Model No. T-500-IPS) available in 12.7mm
              Model No.   Tong Type  Dimensions (mm) Replacement Tips # Unit Wt (kg)
              TT2.2-IPS     Sleeper    267 x 77 x 597     T-500-IPS          10.1
