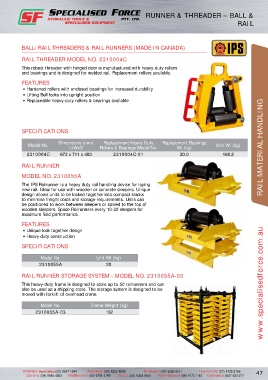

Page 57 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

RUNNER & THREADER – BALL & RAIL – IPS
RUNNER & THREADER – BALL &
RAIL

BALL/RAIL THREADERS & RAIL RUNNERS (MADE IN CANADA)

RAIL THREADER MODEL NO. 2310004C

This robust threader with hinged door is manufactured with heavy-duty rollers
and bearings and is designed for welded rail. Replacement rollers available.

FEATURES
• Hardened rollers with enclosed bearings for increased durability
• Lifting Bell locks into upright position
• Replaceable heavy-duty rollers & bearings available

SPECIFICATIONS

Dimensions (mm) Replacement Heavy Duty Replacement Bearings
Model No. Unit Wt (kg)
LxWxD Rollers & Bearings Model No. Wt (kg) RAIL MATERIAL HANDLING
2310004C 673 x 711 x 483 2310004C-01 20.0 168.2

RAIL RUNNER

MODEL NO. 2310055A
The IPs Railrunner is a heavy duty rail handling device for laying
new rail. Ideal for use with wooden or concrete sleepers. Unique
design allows units to be locked together into compact stacks
to minimise freight costs and storage requirements. Units can
be positioned to work between sleepers or spiked to the top of
wooden sleepers. space Railrunners every 10-20 sleepers for
maximum field performance.

FEATURES
• Unique lock together design
• Heavy duty construction
SPECIFICATIONS

Model No. Unit Wt (kg)
2310055A 20

RAIL RUNNER STORAGE SYSTEM - MODEL NO. 2310055A-03

This heavy-duty frame is designed to store up to 50 railrunners and can www.specialisedforce.com.au
also be used as a shipping crate. The storage system is designed to be
moved with forklift of overhead crane.

Model No. Frame Weight (kg)
2310055A-03 132
