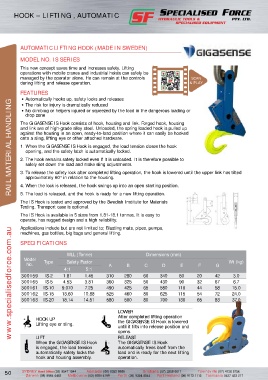

Page 60 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

HOOK – LIFTING , AUTOMATIC – GIGASENSE
HOOK – LIFTING , AUTOMATIC

AUTOMATIC LIFTING HOOK (MADE IN SWEDEN)

MODEL NO. IS SERIES

This new concept saves time and increases safety. Lifting
operations with mobile cranes and industrial hoists can safely be
managed by the operator alone. He can remain at the controls SCAN
during lifting and release operation. & PLAY

FEATURES
• Automatically hooks up, safety locks and releases
RAIL MATERIAL HANDLING
• The risk for injury is dramatically reduced
• No climbing or helpers injured or squeezed by the load in the dangerous loading or
drop zone
The GIGAsENsE Is Hook consists of hook, housing and link. Forged hook, housing
and link are of high-grade alloy steel. Unloaded, the spring loaded hook is pulled up
against the housing in an open, ready-to-load position where it can easily be hooked
onto a sling, lifting eye or other attached hardware.

1. When the GIGAsENsE Is Hook is engaged, the load tension closes the hook
opening, and the safety latch is automatically locked.
2. The hook remains safety locked even if it is unloaded. It is therefore possible to
safely set down the load and make sling adjustments.
3. To release the safety lock after completed lifting operation, the hook is lowered until the upper link has tilted
approximately 60° in relation to the housing.
4. When the lock is released, the hook swings up into an open starting position.

5. The load is released, and the hook is ready for a new lifting operation.
The Is Hook is tested and approved by the swedish Institute for Materials
Testing. Transport case is optional.

The Is Hook is available in 5 sizes from 1.81-18.1 tonnes. It is easy to
operate, has rugged design and a high reliability.
Applications include but are not limited to; Blasting mats, pipes, pumps,
www.specialisedforce.com.au
machines, gas bottles, big bags and general lifting.
SPECIFICATIONS

WLL (Tonne) Dimensions (mm)
Model
No. Type safety Factor A B C D E F G Wt (kg)
4:1 5:1
300159 Is-2 1.81 1.45 310 280 60 340 80 20 42 3.0
300165 Is-5 4.53 3.81 360 325 50 430 90 32 67 6.7
300161 Is-10 9.070 7.25 490 425 65 580 110 44 58 15.0
300162 Is-15 13.60 10.88 525 460 80 625 115 54 72 24.0
300163 Is-20 18.14 14.51 580 500 80 700 130 65 83 37.0

LOWER
HOOk UP After completed lifting operation
Lifting eye or sling. the GIGAsENsE Is Hook is lowered
until it tilts into release position and
opens.
LIFT RELEAsE
When the GIGAsENsE Is Hook The GIGAsENsE Is Hook
is engaged, the load tension automatically frees itself from the
automatically safety locks the load and is ready for the next lifting
hook and housing assembly. operation.
