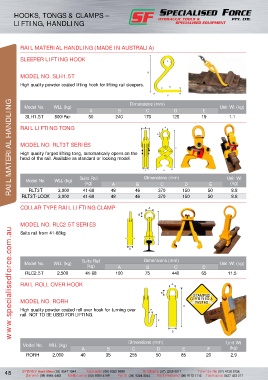

Page 58 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

HOOKS, TONGS & CLAMPS – LIFTING, HANDLING
HOOKS, TONGS & CLAMPS –
LIFTING, HANDLING

RAIL MATERIAL HANDLING (MADE IN AUSTRALIA)

SLEEPER LIFTING HOOK

MODEL NO. SLH1.5T

High quality powder coated lifting hook for lifting rail sleepers.

RAIL MATERIAL HANDLING
Dimensions (mm)
Model No. WLL (kg) Unit Wt (kg)
A B C D E
SLH1.5T 800/Pair 50 240 170 125 19 1.1

RAIL LIFTING TONG

MODEL NO. RLT3T SERIES

High quality forged lifting tong, automatically opens on the
head of the rail. Available as standard or locking model.

Model No. WLL (kg) suits Rail A B Dimensions (mm) D E Unit Wt
(kg)
(kg)
C
RLT3T 3,000 41-68 48 46 370 150 50 8.8
RLT3T-LOCK 3,000 41-68 48 46 370 150 50 8.8
COLLAR TYPE RAIL LIFTING CLAMP

MODEL NO. RLC2.5T SERIES
www.specialisedforce.com.au
suits rail from 41-68kg

suits Rail Dimensions (mm)
Model No. WLL (kg) Unit Wt (kg)
(kg) A B C D
RLC2.5T 2,500 41-68 100 75 440 65 11.5

RAIL ROLL OVER HOOK

STAMPED
MODEL NO. RORH CERTIFIED &
TESTED
High quality powder coated roll over hook for turning over
rail. NOT TO BE UsED FOR LIFTING.

Dimensions (mm) Unit Wt
Model No. WLL (kg)
A B C D E F (kg)
RORH 2,000 40 35 255 50 85 20 2.9
