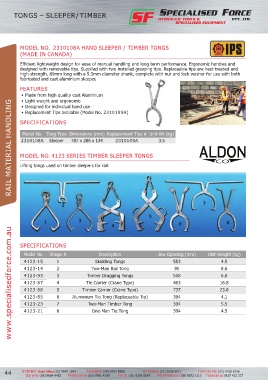

Page 54 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

TONGS – SLEEPER/TIMBER – IPS
TONGS – SLEEPER/TIMBER

MODEL NO. 2310108A HAND SLEEPER / TIMBER TONGS
(MADE IN CANADA)

Efficient lightweight design for ease of manual handling and long term performance. Ergonomic handles and
designed with removable tips. Supplied with two installed grasping tips. Replaceable tips are heat treated and
high-strength, 89mm long with a 9.5mm diameter shank, complete with nut and lock washer for use with both
fabricated and cast aluminium sleeper.

FEATURES
• Made from high quality cast Aluminium
• Light weight and ergonomic
RAIL MATERIAL HANDLING
• Designed for individual hand use
• Replacement Tips available (Model No. 2310109A)

SPECIFICATIONS

Model No. Tong Type Dimensions (mm) Replacement Tips # Unit Wt (kg)
2310108A Sleeper 787 x 286 x 134 2310109A 3.5

MODEL NO. 4123 SERIES TIMBER SLEEPER TONGS

Lifting tongs used on timber sleepers for rail.

www.specialisedforce.com.au

SPECIFICATIONS

Model No. Image # Description Jaw Opening (mm) Unit Weight (kg)
4123-15 1 Skidding Tongs 553 4.5
4123-14 2 Two-Man Rail Tong 95 8.6
4123-93 3 Timber Dragging Tongs 508 6.8
4123-87 4 Tie Carrier (Crane Type) 483 16.8
4123-88 5 Timber Carrier (Crane Type) 737 23.8
4123-85 6 Aluminium Tie Tong (Replaceable Tip) 394 4.1
4123-23 7 Two-Man Timber Tong 394 5.5
4123-21 8 One-Man Tie Tong 394 4.5
