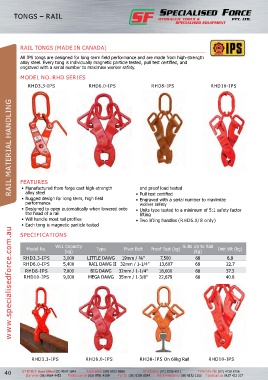

Page 50 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

TONGS – RAIL

RAIL TONGS (MADE IN CANADA)

engraved with a serial number to maximise worker safety.
MODEL NO. RHD SERIES

RHD3.3-IPS RHD6.0-IPS RHD8-IPS RHD10-IPS

RAIL MATERIAL HANDLING

FEATURES
• Manufactured from forge cast high-strength and proof load tested
alloy steel •
• • Engraved with a serial number to maximize
performance worker safety
• Designed to open automatically when lowered onto • Units type tested to a minimum of 5:1 safety factor
the head of a rail lifting
• • Two lifting handles (RHD6.0/8 only)
• Each tong is magnetic particle tested
www.specialisedforce.com.au
SPECIFICATIONS

WLL Capacity Suits Up to Rail
Model No. (kg) Type Pivot Bolt Proof Test (kg) (kg) Unit Wt (kg)

RHD3.3-IPS 3,000 LITTLE DAWG 19mm / ¾” 7,500 68 6.8
RHD6.0-IPS 5,400 RAIL DAWG II 32mm / 1-1/4” 13,607 68 22.7
RHD8-IPS 7,000 BIG DAWG 32mm / 1-1/4” 18,000 68 37.3
RHD10-IPS 9,000 MEGA DAWG 35mm / 1-3/8” 22,679 68 40.8

RHD3.3-IPS RHD6.0-IPS RHD8-IPS On 68kg Rail RHD10-IPS
