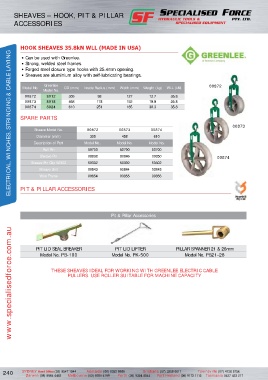

Page 250 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

SHEAVES – HOOK, PIT & PILLAR ACCESSORIES
SHEAVES – HOOK, PIT & PILLAR
ACCESSORIES

HOOK SHEAVES 35.8kN WLL (MADE IN USA)
ELECTRICAL, WINCHES, STRINGING & CABLE LAYING
• Can be used with Greenlee.
• strong, welded steel frames.
• Forged steel closure type hooks with 25.4mm opening.
• sheaves are aluminium alloy with self-lubricating bearings.

Greenlee 00872
Model No. OD (mm) Inside Radius (mm) Width (mm) Weight (kg) WLL (kN)
Model No.
00872 8012 305 98 127 12.7 35.8
00873 8018 458 178 152 19.9 35.8
00874 8024 610 251 165 30.3 35.8

SPARE PARTS
00873
sheave Model No. 00872 00873 00874
Diameter (mm) 305 458 610
Description of Part Model No.. Model No. Model No.
Roll Pin 50700 50700 50700
sheave Pin 00838 00846 00850 00874
sheave Pin Clip 50302 50302 50302 50302
sheave Unit 00843 00844 00845
Yoke Frame 00854 00855 00856

PIT & PILLAR ACCESSORIES

Pit & Pillar Accessories

www.specialisedforce.com.au

PIT LID sEAL BREAkER PIT LID LIFTER PILLAR sPANNER 21 & 26mm
Model No. PB-100 Model No. PK-500 Model No. PS21-26

THESE SHEAVES IDEAL FOR WORKING WITH GREENLEE ELECTRIC CABLE
PULLERS. USE ROLLER SUITABLE FOR MACHINE CAPACITY
