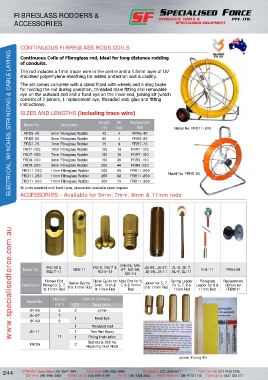

Page 254 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

FIBREGLASS RODDERS & ACCESSORIES – HEARTHILL
FIBREGLASS RODDERS &
ACCESSORIES

CONTINUOUS FIBREGLASS RODS COILS
ELECTRICAL, WINCHES, STRINGING & CABLE LAYING
Continuous Coils of Fibreglass rod, ideal for long distance rodding
of conduits.
The rod includes a 1mm tracer wire in the centre and a 1.5mm layer of Uv
stabilised polyethylene sheathing for added protection and durability.
The set comes complete with a stand fitted with wheels and a drag brake
for holding the rod during operation, threaded male fitting and removable
eye on the outward end and a fixed eye on the inner end, joining kit (which
consists of 2 joiners, 1 replacement eye, threaded end, glue and fitting
instructions).
SIZES AND LENGTHS (including trace wire)

Length Wt Replacement
Model No. Description
(m) (kg) Rod Model No. FRD11-300
FRD5-40 5mm Fibreglass Rodder 40 4 FRR5-40
FRD5-80 5mm Fibreglass Rodder 80 4 FRR5-80
FRD7-75 7mm Fibreglass Rodder 75 9 FRR7-75
FRD7-125 7mm Fibreglass Rodder 125 13 FRR7-125
FRD7-150 7mm Fibreglass Rodder 150 16 FRR7-150
FRD9-150 9mm Fibreglass Rodder 150 38 FRR9-150
FRD9-200 9mm Fibreglass Rodder 200 44 FRR9-200
FRD11-200 11mm Fibreglass Rodder 200 55 FRR11-200
FRD11-250 11mm Fibreglass Rodder 250 62 FRR11-250 Model No. FRD5-80
FRD11-300 11mm Fibreglass Rodder 300 73 FRR11-300
All units supplied with hard tyres, pneumatic available upon request
ACCESSORIES – Available for 5mm, 7mm, 9mm & 11mm rods

www.specialisedforce.com.au

FEE-05 & RG-5, RG-7 & ME-05, ME- JS-05, JS-07, SL-5, SL-7,
Model No. SE9-11 07, ME-09, FL9-11 PR040B
FEE-7-11 RG-9-11 ME-11 JS-09, JS-11 SL-9, SL-11
Female End Roller Guide for Male End for 5, spring Leader Fibreglass Replacement
Description Fitting for 5, 7, swivel Eye for 5mm, 7mm & 7, 9 & 11mm Joiner for 5, 7, for 5, 7, 9 & Leader for 9 & Rollers for
9, 11mm Rod 9 & 11mm Rod 9-11mm Rod Rod 9 & 11mm Rod 11mm Rod 11mm Rod FRD9/11

Rod OD Each kit Contains
Model No.
(mm) qTY Description.
JK-05 5 2 Joiner
JK-07 7
JK-09 9 1 Fixed Eye
1 Threaded End
JK-11 1 Two Part Epoxy
11 1 Fitting Instruction

FRDG 2 sachets & ACC for
Repairing Duct Rods
Joiner Fixing Kit
