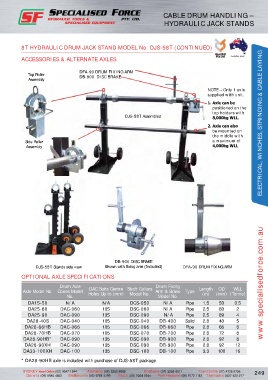

Page 259 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

CABLE DRUM HANDLING –
HYDRAULIC JACK STANDS

8T HYDRAULIC DRUM JACK STAND MODEL No. DJS-58T (CONTINUED)

ACCESSORIES & ALTERNATE AXLES Australian Made

DFA-90 DRUM FIXING ARM
Top Roller DB-900 DISC BRAKE
Assembly

NOTE – Only 1 axle
supplied with unit.
1. Axle can be
positioned on the
top holders with
DJS-58T Assembled 8,000kg WLL.

2. Axle can also ELECTRICAL, WINCHES, STRINGING & CABLE LAYING
be mounted on
the middle with
side Roller a maximum of
Assembly 4,000kg WLL

DB-900 DIsC BRAkE
DJS-58T stands side view Shown with fixing arm (Included) DFA-90 DRUM FIXING ARM

OPTIONAL AXLE SPECIFICATIONS
Drum Axle DAC suits Centre shaft Collars Drum Fixing Length OD WLL www.specialisedforce.com.au
Axle Model No. Cones Model Holes Up to (mm) Model No. Arm & Brake Type (m) (mm) (Tonne)
No. Model No.
DA15-50 N/A N/A DCS-050 N/A Pipe 1.5 50 0.5
DA25-60 DAC-060 105 DSC-060 N/A Pipe 2.5 60 2
DA25-90 DAC-090 135 DSC-090 N/A Pipe 2.5 89 4
DA28-40S DAC-040 105 DSC-040 DB-400 solid 2.8 40 5
DA28-66HB DAC-066 105 DSC-066 DB-660 Pipe 2.8 66 8
DA28-70HB DAC-070 105 DSC-070 DB-700 Pipe 2.8 72 8
DA28-90HB* DAC-090 135 DSC-090 DB-900 Pipe 2.8 92 8
DA28-90XH DAC-090 135 DSC-090 DB-900 Pipe 2.8 92 12
DA33-100XH DAC-100 135 DSC-100 DB-100 Pipe 3.3 100 16

* DA28-90HB axle is included with purchase of DJS-58T package.
