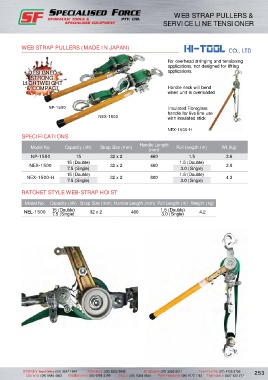

Page 263 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

WEB STRAP PULLERS & SERVICE LINE TENSIONER – HI-TOOL
WEB STRAP PULLERS &
SERVICE LINE TENSIONER

WEB STRAP PULLERS (MADE IN JAPAN)

For overhead stringing and tensioning
applications, not designed for lifting
DESIGNED applications.
STRONG,
LIGHTWEIGHT
& COMPACT Handle neck will bend
when unit is overloaded

NP-1500 Insulated Fibreglass
handle for live line use
NEX-1500 with insulated stick

NEX-1500-H
SPECIFICATIONS

Model No. Capacity (kN) strap size (mm) Handle Length Pull Length (m) Wt (kg)
(mm)
NP-1500 15 32 x 2 460 1.5 3.6
15 (Double) 1.5 (Double)
NEX-1500 32 x 2 460 3.9
7.5 (single) 3.0 (single)
15 (Double) 1.5 (Double)
NEX-1500-H 32 x 2 800 4.3
7.5 (single) 3.0 (single)
RATCHET STYLE WEB-STRAP HOIST

Model No. Capacity (kN) strap size (mm) Handle Length (mm) Pull Length (m) Weight (kg)

NEL-1500 15 (Double) 32 x 2 460 1.5 (Double) 4.2
7.5 (single)
3.0 (single)
