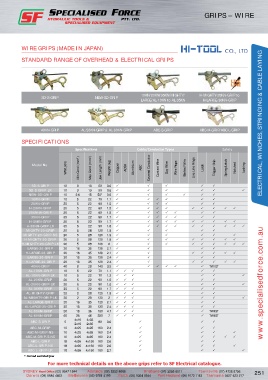

Page 261 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

INDEX TEST PAGE 1
GRIPS – WIRE

WIRE GRIPS (MADE IN JAPAN)

STANDARD RANGE OF OVERHEAD & ELECTRICAL GRIPS

10kN/20kN/35kN/MIGHTY/ H-MIGHTY-20kN-GRIP to
sD-s-GRIP NEW-sD-GRIP
LARGE/AL-10kN to AL-35kN H-LARGE-30kN-GRIP

40kN-GRIP AL-50kN-GRIP & AL-60kN-GRIP ABC-s-GRIP ABC-M-GRIP/ABC-L-GRIP ELECTRICAL, WINCHES, STRINGING & CABLE LAYING

SPECIFICATIONS

Specifications Cable/Conductor Types Safety

WWL(kN) Min Cond (mm²) Max Cond (mm²) Jaw Length (mm) Weight (kg) Copper ACsR Aluminium ABC Covered Conductor Contact Wire Guy Wire Wire Rope Barbed Wire Live Line Rings Latch Trigger Grip spring Latch Notched Locking
Model No.

SD-S-GRIP 10 3 13 50 0.6 P P P P P
SD-S-GRIP-LK 10 3 13 50 0.6 P P P P P P
NEW-SD-GRIP 10 2.6 15 50* 0.6 P P P P P P
10KN-GRIP 10 5 22 70 1.1 P P P P P P
20KN-GRIP 20 5 22 90 1.5 P P P P P P
H-20KN-GRIP 20 5 22 90 1.5 P P P P P P P P P
20KN-W-GRIP 20 5 22 90 1.5 P P P P P P P
35KN-GRIP 35 5 22 90 1.7 P P P P P P P
H-35KN-GRIP 35 5 22 90 1.7 P P P P P P P P P P
H-35KN-GRIP-LK 35 5 22 90 1.8 P P P P P P P P P P P
MIGHTY-20-GRIP 20 5 28 120 1.9 P P P P P
MIGHTY-20-GRIP-NS 20 5 28 120 1.9 P P P P P P
H-MIGHTY-20-GRIP 20 5 28 120 1.9 P P P P P P P P
H-MIGHTY-20-GRIP-LK 20 5 28 120 2 P P P P P P P P P
LARGE-20-GRIP 20 16 35 120 2.1 P P P P
H-LARGE-20-GRIP 20 16 35 120 2.1 P P P P P P P
LARGE-30-GRIP 30 18 35 120 2.4 P P P P
H-LARGE-30-GRIP 30 18 35 120 2.4 P P P P P P P
40KN-GRIP 40 8 28 140 3.5 P P P P P P TWIST
AL-10KN-GRIP 10 5 22 70 1.1 P P P P P
AL-10KN-GRIP-LK 10 5 22 70 1.3 P P P P P P
AL-20KN-GRIP 20 5 22 90 1.5 P P P P P
AL-20KN-GRIP-LK 20 5 22 90 1.6 P P P P P P www.specialisedforce.com.au
AL-35KN-GRIP 35 5 22 90 1.7 P P P P P
AL-MIGHTY-GRIP 20 2 28 120 1.9 P P P P P
AL-MIGHTY-GRIP-LK 20 2 28 120 2 P P P P P P
AL-LARGE-GRIP 20 16 35 120 2.1 P P P P P
AL-LARGE-30-GRIP 30 18 35 120 2.4 P P P P P
AL-50KN-GRIP 50 18 36 180 4.7 P P P P TWIST
AL-60KN-GRIP 60 28 46 220 7 P P P P TWIST
4x16 4x35
ABC-S-GRIP 5 80 0.6 P P P
2x16 2x50
ABC-M-GRIP 10 4x25 4x95 160 2.4 P P P
ABC-M-GRIP-NS 10 4x25 4x95 160 2.4 P P P P
ABC-M-GRIP-S-NS 10 4x25 4x95 160 2.4 P P P P P
ABC-L-GRIP 18 4x95 4x150 180 2.6 P P P
ABC-L-GRIP-NS 18 4x95 4x150 180 2.6 P P P P
ABC-L-GRIP-LK 18 4x95 4x150 180 2.7 P P P P
* Curved serrated jaw
For more technical details on the above grips refer to SF Electrical catalogue.
