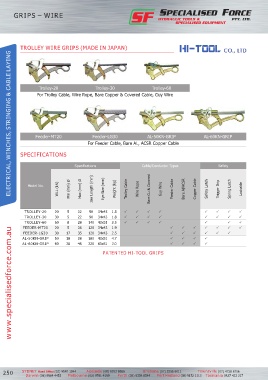

Page 260 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

GRIPS – WIRE – HI-TOOL
GRIPS – WIRE

TROLLEY WIRE GRIPS (MADE IN JAPAN)
ELECTRICAL, WINCHES, STRINGING & CABLE LAYING

Trolley-20 Trolley-30 Trolley-60
For Trolley Cable, Wire Rope, Bare Copper & Covered Cable, Guy Wire

Feeder-MT20 Feeder-LG30 AL-50KN-GRIP AL-60KN-GRIP
For Feeder Cable, Bare AL, ACSR Copper Cable

SPECIfICATIONS

Specifications Cable/Conductor Types Safety

WLL (kN) Min (mm) Ø Max (mm) Ø Jaw Length (mm) Eye Size (mm) Weight (kg) Trolley Cable Wire Rope Bare Cu & Covered Guy Wire Feeder Cable Bare Al/ACSR Copper Cable Safety Latch Trigger Grip Spring Latch Lockable
Model No.

TROLLEY-20 20 5 22 90 34x43 1.8        
TROLLEY-30 30 5 22 90 34x43 1.8        
TROLLEY-60 60 8 28 140 43x51 3.5       
fEEDER-MT20 20 5 28 120 34x43 1.9       
www.specialisedforce.com.au
fEEDER-LG30 30 17 35 120 34x43 2.5      
AL-50KN-GRIP 50 18 28 180 43x51 4.7    
AL-60KN-GRIP 60 28 46 220 60x51 7.0    
PATENTED HI-TOOL GRIPS
