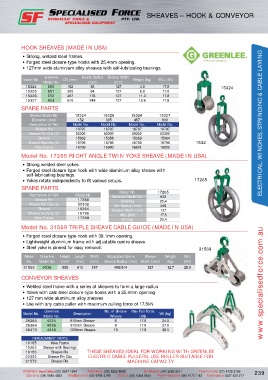

SHEAVES – HOOK & CONVEYOR – GREENLEE
SHEAVES – HOOK & CONVEYOR

HOOK SHEAVES (MADE IN USA)

• strong, welded steel frames.
• Forged steel closure-type hooks with 25.4mm opening.
• 127mm wide aluminium alloy sheaves with self-lubricating bearings.

Greenlee Inside Radius sheave Width
Model No. OD (mm) Weight (kg) WLL (kN)
Model No. (mm) (mm)
15324 650 152 38 127 4.0 17.8 15324
15325 651 305 84 127 6.8 17.8
15326 652 457 178 127 11.3 17.8
15327 653 610 249 127 15.9 17.8
SPARE PARTS
sheave Model No. 15324 15325 15326 15327
Diameter (mm) 152 305 457 610
Description of Part Model No. Model No. Model No. Model No. ELECTRICAL, WINCHES, STRINGING & CABLE LAYING
sheave Pin 16797 16797 16797 16797
sheave Pin Clip (2) 50302 50302 50302 50302
sheave 15362 15358 15363 15364
sheave Bushing (2) 16798 16798 16798 16798 15327
Yoke Frame 16799 16800 16801 16802
Model No. 17265 RIGHT ANGLE TWIN YOKE SHEAVE (MADE IN USA).

• strong welded steel yokes.
• Forged steel closure type hook with wide aluminium alloy sheave with
self-lubricating bearings.
• Yokes rotate independently to fit various setups. 17265
SPARE PARTS
Model No. 17265
Description of Part Model No. Greenlee Model No. 639
sheave Pin 17266 Opening 25.4
sheave Pin Clip (2) 50302 Min Radius (mm) 249
sheave 15364 Sheave Width (mm) 127
sheave Bushing (2) 16798 WLL (kN) 17.8
Yoke Frame 17299 Wt (kg) 20.4
Model No. 31569 TRIPLE SHEAVE CABLE GUIDE (MADE IN USA)
• Forged steel closure type hook with 38.1mm opening.
• Lightweight aluminium frame with adjustable centre sheave.
• steel yoke is pinned for easy removal. 31569
Model Greenlee Height Length Width Adjustable Centre sheave Weight WLL
No. Model No. (mm) (mm) (mm) sheave Radius (mm) Width (mm) (kg) (kN)
31569 6036 555 610 187 495/914 127 12.7 28.9

CONVEYOR SHEAVES
• Welded steel frame with a series of sheaves to form a large radius www.specialisedforce.com.au
• Yokes with cast steel closure-type hooks with a 25.4mm opening
• 127 mm wide aluminium alloy sheaves
• Use with any cable puller with maximum pulling force of 17.8kN

Greenlee No. of sheave Max Pull Force
Model No. Description Wt (kg)
Model No. Wheels (kN)
26368 4024 610mm sheave 6 17.8 24.5
26369 4036 915mm sheave 8 17.8 27.0
26370 4048 1220mm sheave 10 17.8 38.0
REPLACEMENT PARTs
19185 Yoke Frame
15362 sheave with Bearings
19186 sheave Pin THESE SHEAVES IDEAL FOR WORKING WITH GREENLEE
50302 sheave Pin Clip ELECTRIC CABLE PULLERS. USE ROLLER SUITABLE FOR
31573 sheave Pin MACHINE CAPACITY
