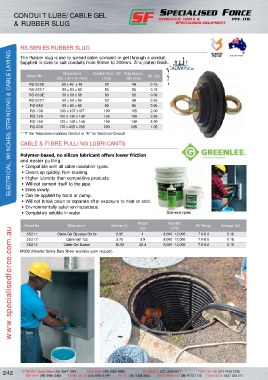

Page 252 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

CONDUIT LUBE/CABLE GEL & RUBBER SLUG – HEARTHILL –
GREENLEE
CONDUIT LUBE/CABLE GEL
& RUBBER SLUG

RS SERIES RUBBER SLUG
ELECTRICAL, WINCHES, STRINGING & CABLE LAYING
The Rubber slug is use to spread cable lubricant or gel through a conduit. Australian Made
Supplied in sizes to suit conduits from 50mm to 200mm. Zinc plated finish.
ALWAYS
Dimensions Conduit Nom. OD slug Approx. MEASURE
Model No. * Wt (kg)
OAL x W x H (mm) (mm) OD (mm) CONDUIT
RS-050E 50 x 46 x 46 50 46 0.15 ID
RS-050T 50 x 53 x 53 50 53 0.15
RS-063E 50 x 58 x 58 63 58 0.30
RS-063T 60 x 66 x 66 63 66 0.35
RS-080 80 x 85 x 85 80 85 0.95
RS-100 100 x 107 x107 100 105 2.00
RS-125 100 x 130 x 130 125 130 2.85
RS-150 100 x 148 x 148 150 149 3.20
RS-200 170 x 205 x 205 200 205 1.05
* “T” for Telecommunications Conduit or “E” for Electrical Conduit

CABLE & FIBRE PULLING LUBRICANTS

Polymer-based, no silicon lubricant offers lower friction
and easier pulling.
• Compatible with all cable insulation types.
• Cleans up quickly. Non-staining.
• Higher lubricity than competitive products.
• Will not cement itself to the pipe.
• Dries slowly.
• Can be applied by hand or pump.
• Will not break down or separate after exposure to heat or cold.
• Environmentally safe/non-hazardous.
• Completely soluble in water size examples

Weight viscosity
Model No. Description volume (L) Ph Range Average Cof
(kg) (CPs)
www.specialisedforce.com.au
35211 Cable-Gel squeeze Bottle 0.95 1 8,000 -12,000 7.0-8.0 0.18
35212 Cable-Gel Tub 3.79 3.9 8,000 -12,000 7.0-8.0 0.18
35213 Cable-Gel Bucket 18.93 20.4 8,000 -12,000 7.0-8.0 0.18
MsDs (Material safety Data sheet available upon request)
