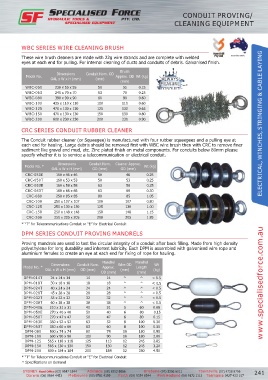

Page 251 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

CONDUIT PROVING/CLEANING EqUIPMENT – HEARTHILL
CONDUIT PROVING/
CLEANING EqUIPMENT

WBC SERIES WIRE CLEANING BRUSH

These wire brush cleaners are made with 22g wire strands and are complete with welded Australian Made
eyes at each end for pulling. For internal cleaning of ducts and conduits of debris. Galvanised finish.

Brush
Dimensions Conduit Nom. OD
Model No. Approx. OD Wt (kg)
OAL x W x H (mm) (mm) ALWAYS
(mm) MEASURE
WBC-050 230 x 55 x 55 50 55 0.25 CONDUIT
WBC-063 245 x 70 x 70 63 70 0.25 ID
WBC-080 390 x 90 x 90 80 90 0.60
WBC-100 435 x 110 x 110 100 110 0.60
WBC-125 470 x 130 x 130 125 130 0.65
WBC-150 470 x 130 x 130 150 130 0.80
WBC-200 600 x 230 x 230 200 230 0.90 ELECTRICAL, WINCHES, STRINGING & CABLE LAYING

CRC SERIES CONDUIT RUBBER CLEANER

The Conduit rubber cleaner (or Squeegee) is manufactured with four rubber squeegees and a pulling eye at
each end for hauling. Large debris should be removed first with WBC wire brush then with CRC to remove finer
sediment like gravel and mud, etc. Zinc plated finish on metal components. For conduits below 80mm please
specify whether it is to service a telecommunication or electrical conduit.

Dimensions Conduit Nom. Cleaner Approx.
Model No. * Wt (kg)
OAL x W x H (mm) OD (mm) OD (mm)
CRC-050E 160 x 46 x 46 50 46 0.25
CRC-050T 160 x 53 x 53 50 53 0.25
CRC-063E 160 x 58 x 58 63 58 0.25
CRC-063T 160 x 66 x 66 63 60 0.30
CRC-080 250 x 85 x 85 80 85 1.05
CRC-100 250 x 107 x 107 100 107 0.80
CRC-125 250 x 130 x 130 125 130 1.00
CRC-150 250 x 148 x 148 150 148 1.15
CRC-200 250 x 205 x 205 200 205 1.85
* “T” for Telecommunications Conduit or “E” for Electrical Conduit

DPM SERIES CONDUIT PROVING MANDRELS
Proving mandrels are used to test the circular integrity of a conduit after back filling. Made from high density
polyethylene for long durability and inherent lubricity. Each DPM is assembled with galvanised wire rope and
aluminium ferrules to create an eye at each end for fixing of rope for hauling.

Mandrel Mandrel
Dimensions Conduit Nom. Wire OD Wt
Model No. * Approx. Length
OAL x W x H (mm) OD (mm) (mm) (kg)
OD (mm) (mm)
DPM-014T 24 x 14 x 14 14 14 ^ ^ < 0.5
DPM-018T 30 x 18 x 18 18 18 ^ ^ < 0.5 www.specialisedforce.com.au
DPM-024T 40 x 24 x 24 24 24 ^ ^ < 0.5
DPM-028T 45 x 28 x 28 28 28 ^ ^ < 0.5
DPM-032T 55 x 32 x 32 32 32 ^ ^ < 0.5
DPM-038T 60 x 38 x 38 38 38 ^ ^ < 0.5
DPM-040E 210 x 31 x 31 40 31 5 60 0.06
DPM-050E 270 x 40 x 40 50 40 6 80 0.15
DPM-050T 270 x 47 x 47 50 47 6 80 0.15
DPM-063E 350 x 52 x 52 63 52 8 100 0.30
DPM-063T 350 x 60 x 60 63 60 8 100 0.35
DPM-080 500 x 74 x 74 80 74 10 180 0.95
DPM-100 500 x 90 x 90 100 90 10 180 2.00
DPM-125 565 x 118 x 118 125 113 12 245 2.85
DPM-150 565 x 130 x 130 150 130 12 245 3.20
DPM-200 600 x 184 x 184 200 184 12 280 4.50
* “T” for Telecommunications Conduit or “E” for Electrical Conduit
^ Specifications on demand
