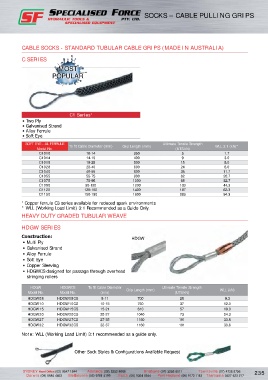

SOCKS – CABLE PULLING GRIPS
SOCKS – CABLE PULLING GRIPS

CABLE SOCKS - STANDARD TUBULAR CABLE GRIPS (MADE IN AUSTRALIA)

C SERIES

MOST
POPULAR

C1 Series 1
• Two Ply
• Galvanised Strand
• Alloy Ferrule
• Soft Eye
sOFT EYE - AL FERRULE Ultimate Tensile strength
Model No. To fit Cable Diameter (mm) Grip Length (mm) (UTs kN) WLL 3:1 (kN)*
C1010 10-14 350 5 1.7
C1014 14-19 400 9 3.0
C1019 19-28 500 15 5.0
C1028 28-40 600 24 8.0
C1040 40-55 800 35 11.7
C1055 55-75 900 62 20.7
C1075 75-95 1000 98 32.7
C1095 95-120 1200 133 44.3
C1120 120-150 1400 187 62.3
C1150 150-190 1600 283 94.3

1 Copper ferrule C3 series available for reduced spark environments
* WLL (Working Load Limit) 3:1 Recommended as a Guide Only.
HEAVY DUTY GRADED TUBULAR WEAVE

HDGW SERIES

Construction: HDGW HDGWCS
• Multi Ply
• Galvanised strand
• Alloy Ferrule
• soft Eye
• Copper sleeving
• HDGWCs designed for passage through overhead
stringing rollers

HDGW HDGWCs To fit Cable Diameter Ultimate Tensile strength
Model No. Model No. (mm) Grip Length (mm) (UTs kN) WLL (kN)
HDGW08 HDGW08CS 8-11 700 28 9.3
HDGW10 HDGW10CS 10-15 750 37 12.3
HDGW15 HDGW15CS 15-21 810 57 19.0
HDGW20 HDGW20CS 20-27 1040 73 24.3
HDGW27 HDGW27CS 27-35 1160 101 33.6
HDGW32 HDGW32CS 32-37 1160 101 33.6

Note: WLL (Working Load Limit) 3:1 recommended as a guide only.

Other Sock Styles & Configurations Available Request
