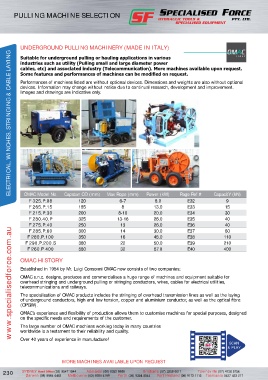

Page 240 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

PULLING MACHINE SELECTION – OMAC
PULLING MACHINE SELECTION

UNDERGROUND PULLING MACHINERY (MADE IN ITALY)
ELECTRICAL, WINCHES, STRINGING & CABLE LAYING
Suitable for underground pulling or hauling applications in various
industries such as utility (Pulling small and large diameter power
cables, etc) and associated industry (Telecommunication). More machines available upon request.
Some features and performances of machines can be modified on request.
Performances of machines listed are without optional devices. Dimensions and weights are also without optional
devices. Information may change without notice due to continual research, development and improvement.
Images and drawings are indicative only.

OMAC Model No. Capstan OD (mm) Max Rope (mm) Power (kW) Page Ref # CapacitY (kN)
F 325.P.08 120 6-7 8.0 E32 9
F 265.P.15 185 8 13.0 E33 15
F 215.P.30 200 8-10 20.0 E34 30
F 280.40.P 325 13-16 26.0 E35 40
F 275.P.40 250 13 26.0 E36 40
www.specialisedforce.com.au
F 285.P.60 300 14 30.0 E37 60
F 280.P.100 350 16 48.0 E38 110
F 290.P.200.S 380 22 50.0 E39 210
F 260.P.400 580 32 87.0 E40 400

OMAC HISTORY

Established in 1954 by Mr. Luigi Consonni OMAC now consists of two companies;
OMAC s.n.c. designs, produces and commercialises a huge range of machines and equipment suitable for
overhead stringing and underground pulling or stringing conductors, wires, cables for electrical utilities,
telecommunications and railways.
The specialisation of OMAC products includes the stringing of overhead transmission lines as well as the laying
of underground conductors, high and low tension, copper and aluminium conductor, as well as the optical fibre
(OPGW).
OMAC’s experience and flexibility of production allows them to customise machines for special purposes, designed
on the specific needs and requirements of the customer.

The large number of OMAC machines working today in many countries
worldwide is a testament to their reliability and quality.
Over 40 years of experience in manufacture!
SCAN
& PLAY

MORE MACHINES AVAILABLE UPON REQUEST
