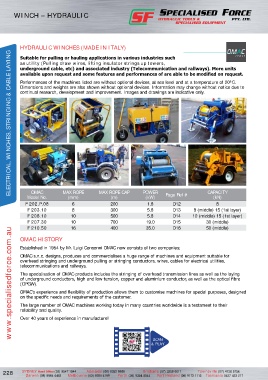

Page 238 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

WINCH – HYDRAULIC – OMAC
WINCH – HYDRAULIC

HYDRAULIC WINCHES (MADE IN ITALY)
ELECTRICAL, WINCHES, STRINGING & CABLE LAYING
Suitable for pulling or hauling applications in various industries such
as utility (Pulling draw wires, lifting insulator strings up towers,
underground cable, etc) and associated industry (Telecommunication and railways). More units
available upon request and some features and performances of are able to be modified on request.
Performances of the machines listed are without optional devices, at sea level and at a temperature of 20ºC.
Dimensions and weights are also shown without optional devices. Information may change without notice due to
continual research, development and improvement. Images and drawings are indicative only.

OMAC MAX ROPE MAX ROPE CAP POWER Page Ref # CAPACITY
Model No. (mm) (m) (kW) (kN)
F 202.P.08 6 200 1.8 D12 8
F 203.10 8 300 5.8 D13 8 (middle) 15 (1st layer)
F 206.10 10 500 5.8 D14 10 (middle) 15 (1st layer)
F 207.30 10 700 19.0 D15 30 (middle)
F 210.50 16 400 35.0 D16 50 (middle)
www.specialisedforce.com.au
OMAC HISTORY

Established in 1954 by Mr. Luigi Consonni OMAC now consists of two companies;
OMAC s.n.c. designs, produces and commercialises a huge range of machines and equipment suitable for
overhead stringing and underground pulling or stringing conductors, wires, cables for electrical utilities,
telecommunications and railways.
The specialisation of OMAC products includes the stringing of overhead transmission lines as well as the laying
of underground conductors, high and low tension, copper and aluminium conductor, as well as the optical fibre
(OPGW).
OMAC’s experience and flexibility of production allows them to customise machines for special purposes, designed
on the specific needs and requirements of the customer.

The large number of OMAC machines working today in many countries worldwide is a testament to their
reliability and quality.
Over 40 years of experience in manufacture!
