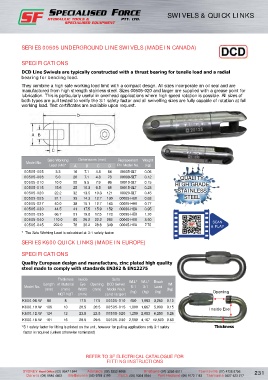

SWIVELS & QUICK LINKS – DCD
SWIVELS & QUICK LINKS

SERIES 00505 UNDERGROUND LINE SWIVELS (MADE IN CANADA)

SPECIFICATIONS

DCD Line Swivels are typically constructed with a thrust bearing for tensile load and a radial
bearing for bending load.

They combine a high safe working load limit with a compact design. All sizes incorporate an oil seal and are
manufactured from high strength stainless steel. sizes 00505-020 and larger are supplied with a grease point for
lubrication. This is particularly useful in overhead applications where high speed rotation is possible. All sizes of
both types are pull tested to verify the 3:1 safety factor and all swivelling sizes are fully capable of rotation at full
working load. Test certificates are available upon request.

D

A B

C

safe Working Dimensions (mm) Replacement Weight
Model No.
Load (kN)* A B C D Pin Model No. (kg)
00505-005 3.3 16 7.1 4.8 64 00005-sLT 0.06
00505-008 5.0 20 7.1 4.8 78 00008-sLT 0.12 QUALITY
00505-010 10.0 22 9.5 7.9 86 00010-sLT 0.15 HIGH GRADE
00505-015 15.6 25 10.3 9.5 98 00015-sLT 0.23 STAINLESS
00505-020 22.2 32 13.5 10.3 121 00020-sLT 0.45
00505-025 31.1 35 14.3 12.7 130 00025-HEX 0.63 STEEL
00505-027 40.0 38 15.1 12.7 143 00025-HEX 0.77
00505-030 44.5 41 17.5 15.9 152 00030-HEX 0.95
00505-035 66.7 51 19.8 17.5 178 00035-HEX 1.70
00505-040 110.0 60 26.2 22.2 262 00040-HEX 3.50 SCAN
00505-045 222.0 76 30.2 28.6 349 00045-HEX 7.70 & PLAY
* The safe Working Load is calculated at 3:1 safety factor
SERIES K600 QUICK LINKS (MADE IN EUROPE)

SPECIFICATIONS

Quality European design and manufacture, zinc plated high quality
steel made to comply with standards EN362 & EN12275

Thickness Inside suits
Length of Material Eye Opening DCD swivel WLL* WLL* Break Wt
Model No. 5:1 3:1 Load
(mm) (mm) Width (mm) Model No.’s (kg)
NOT NUT (mm) (and larger) (kg) (kg) (kg) Opening
K600.08.W 88 8 17.5 17.5 00505-010 650 1,083 3,250 0.10
K600.10.W 106 10 20.5 20.5 00505-015 1,000 1,667 5,000 0.15 Inside Eve
K600.12.W 124 12 23.5 23.5 00505-020 1,250 2,083 6,250 0.26
K600.16.W 161 16 29.5 29.5 00505-030 2,500 4,167 12,500 0.63
* 5:1 safety factor for lifting is printed on the unit, however for pulling applications only 3:1 safety Thickness
factor is required (unless otherwise nominated)

REFER TO SF ELECTRICAL CATALOGUE FOR
FITTING INSTRUCTIONS
