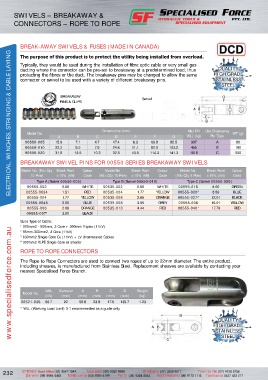

SWIVELS – BREAKAWAY & CONNECTORS – ROPE TO ROPE – DCD
SWIVELS – BREAKAWAY &
CONNECTORS – ROPE TO ROPE

BREAK-AWAY SWIVELS & FUSES (MADE IN CANADA)
ELECTRICAL, WINCHES, STRINGING & CABLE LAYING
The purpose of this product is to protect the utility being installed from overload.
Typically, they would be used during the installation of fibre optic cable or very small gas
ducting where the connector can be pre-set to breakaway at a predetermined load, thus QUALITY
protecting the fibres or the duct. The breakaway pins may be changed to allow the same HIGH GRADE
connector or swivel to be used with a variety of different breakaway pins. STAINLESS
STEEL

BREAkAWAY swivel G
PINs & CLIPs F E
A B
C
D

Dimensions (mm) Max Pin Use Breakaway
Model No. WT (g)
A B C D E F G WLL (kg) Pin Type
00550-005 15.9 7.1 4.7 17.4 6.3 69.8 82.5 307 A 80
00550-010 22.2 9.5 7.9 24.6 11.1 80.9 103.2 455 B 190
00550-020 31.8 13.5 10.3 32.5 13.5 114.3 141.3 1818 C 550
BREAKAWAY SWIVEL PINS FOR 00550 SERIES BREAKAWAY SWIVELS
Model No. (kit=qty Break Point Colour Model No. Break Point Colour Model No. Break Point Colour
10 Pins) ±10% (kN) Code (kit=qty 10 Pins) ±10% (kN) Code (kit=qty 5 Pins) ±10% (kN) Code
Type A (swivel 00550-005) Type B (swivel 00550-010) Type C (swivel 00550-020)
00555-002 0.88 WHITE 00535-002 0.88 WHITE 00555-018 8.00 GREEN
00555-0034 1.51 RED 00535-004 1.77 YELLOW 00555-020 3 8.89 BLUE
00555-004 1.77 YELLOW 00535-006 2.66 ORANGE 00555-027 2 12.01 BLACk
00555-0045 2.00 BLUE 00535-008 3.55 GREY 00555-036 16.01 YELLOW
00555-006 2.66 ORANGE 00535-010 4.44 RED 00555-040 1 17.79 RED
00555-007 4 3.00 BLACk

suits Type of Cable;
1 300mm2 - 500mm, 3 Core + 300mm Triplex (11kv)
www.specialisedforce.com.au
2 95mm-300mm2, 3 Core (11kv)
3 630mm2 single Core Cu (11kv) + Lv Unarmoured Cables
4 300mm2 XLPE single Core or smaller
ROPE TO ROPE CONNECTORS

The Rope to Rope Connectors are used to connect two ropes of up to 22mm diameter. The entire product,
including sheaves, is manufactured from stainless steel. Replacement sheaves are available by contacting your
nearest specialised Force Branch.

WLL Diameter A B C D Weight
Model No.
(kN) (mm) (mm) (mm) (mm) (mm) (kg)
00521-035 66.7 22 50.8 23.8 17.5 139.7 1.23
* WLL (Working Load Limit) 3:1 recommended as a guide only
D
QUALITY
A B HIGH GRADE
STAINLESS
STEEL
C
