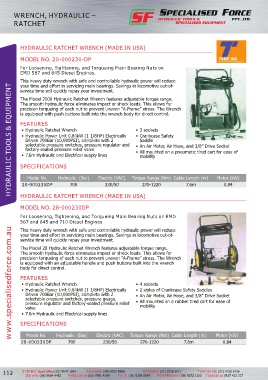

Page 122 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

WRENCH, HYDRAULIC –
RATCHET

HYDRAULIC RATCHET WRENCH (MADE IN USA)

MODEL NO. 20-000230-DP

For Loosening, Tightening, and Torqueing Main Bearing Nuts on
EMD 567 and 645 Diesel Engines.

This heavy duty wrench with safe and controllable hydraulic power will reduce
HYDRAULIC TOOLS & EQUIPMENT
your time and effort in servicing main bearings. Savings in locomotive out-of-
service time will quickly repay your investment.
The Model 2000 Hydraulic Ratchet Wrench features adjustable torque range.
The smooth hydraulic force eliminates impact or shock loads. This allows for
precision torqueing of each nut to prevent uneven “A-Frame” stress. The Wrench
is equipped with push buttons built into the wrench body for direct control.
FEATURES
• Hydraulic Ratchet Wrench • 3 sockets
• Hydraulic Power Unit 0.84kW (1 1/8HP) Electrically • Crankcase Safety
Driven 700Bar (10,000PSI), complete with 2 Saddle
selectable pressure switches, pressure regulator and • An Air Motor, Air Hose, and 3/8” Drive Socket
factory sealed pressure relief valve • All mounted on a pneumatic tired cart for ease of
• 7.6m Hydraulic and Electrical supply lines mobility

SPECIFICATIONS

Model No. Hydraulic (Bar) Electric (VAC) Torque Range (Nm) Cable Length (m) Motor (kW)
20-000230DP 700 230/50 270-1220 7.6m 0.84

HYDRAULIC RATCHET WRENCH (MADE IN USA)

MODEL NO. 28-000230DP

For Loosening, Tightening, and Torqueing Main Bearing Nuts on EMD
567 and 645 and 710 Diesel Engines
www.specialisedforce.com.au
This heavy duty wrench with safe and controllable hydraulic power will reduce
your time and effort in servicing main bearings. Savings in locomotive out-of-
service time will quickly repay your investment.
The Model 28 Hydraulic Ratchet Wrench features adjustable torque range.
The smooth hydraulic force eliminates impact or shock loads. This allows for
precision torqueing of each nut to prevent uneven “A-Frame” stress. The Wrench
is equipped with an adjustable handle and push buttons built into the wrench
body for direct control.

FEATURES
• Hydraulic Ratchet Wrench • 4 sockets
• Hydraulic Power Unit 0.84kW (1 1/8HP) Electrically • 2 styles of Crankcase Safety Saddles
Driven 700Bar (10,000PSI), complete with 2 • An Air Motor, Air Hose, and 3/8” Drive Socket
selectable pressure switches, pressure gauge, • All mounted on a rubber tired cart for ease of
pressure regulator and factory-sealed pressure relief mobility
valve
• 7.6m Hydraulic and Electrical supply lines

SPECIFICATIONS

Model No. Hydraulic (Bar) Electric (VAC) Torque Range (Nm) Cable Length (m) Motor (kW)
28-000230DP 700 230/50 270-1220 7.6m 0.84
