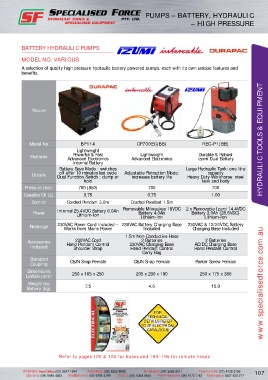

Page 117 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

PUMPS – BATTERY, HYDRAULIC – HIGH PRESSURE – IZUMI –
INTERCABLE – DURAPAC
PUMPS – BATTERY, HYDRAULIC
– HIGH PRESSURE

BATTERY HYDRAULIC PUMPS

MODEL NO. VARIOUS

A selection of quality high pressure hydraulic battery powered pumps, each with its own unique features and
benefits.


HYDRAULIC TOOLS & EQUIPMENT
Model No BP114 CP700EC(BB) REC-P1(BB)
Lightweight
Powerful & Fast
Durable & Robust
Lightweight
Features Advanced Electronics Advanced Electronics Izumi Dual Battery
Internal Battery
Battery save Mode : switches Large Hydraulic Tank: one litre
off after 10 minutes last cycle
capacity
Details Dual Function switch : dump or Adjustable Retraction Mode: Heavy Duty Workhorse: steel
increases battery life
hold tank and body
Pressure (bar) 700 (850) 700 700
Useable Oil (L) 0.75 0.75 1.00
Control Corded Pendant 3.0m Corded Pendant 1.5m

Battery 4.0Ah
Battery 3.0Ah (28.8vDC)
Power Internal 25.4vDC Battery 6.0Ah Removable Milwaukee 18vDC 2 x Removable Izumi 14.4vDC
Lithium-Ion
Lithium-Ion
Lithium-Ion
Recharge 230vAC Power Cord Included – 230vAC Battery Charging Base 230vAC & 12/24vDC Battery
Charging Base Included
Included
Works from Mains Power
1.5m Non-Conductive Hose
Accessories 230vAC Cord 2 Batteries 2 Batteries
Included Hand Pendant Control 230vAC Charging Base AC/DC Charging Base
Hand Pendant Control
shoulder strap
Hand Pendant Control
Carry Bag
standard CEJN snap Female CEJN snap Female Parker screw Female
Coupling
Dimensions 250 x 165 x 250 205 x 290 x 190 250 x 175 x 380
LxWxH (mm)
Weight Inc 7.5 4.6 15.9 www.specialisedforce.com.au
Battery (kg)

FOR
TECHNICAL
DETAILS REFER
TO SF ELECTRICAL
CATALOGUE

Refer to pages 100 & 105 for hoses and 194–195 for remote heads
