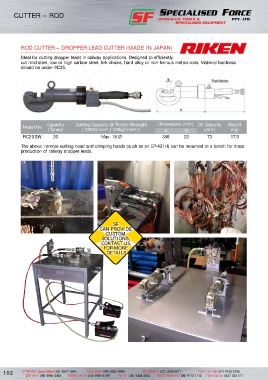

Page 112 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18
P. 112
CUTTER – ROD – RIKEN
CUTTER – ROD
ROD CUTTER – DROPPER LEAD CUTTER (MADE IN JAPAN)
Ideal for cutting dropper leads in railway applications. Designed to efficiently
cut mild steel, low or high carbon steel, link chains, hard alloy or non-ferrous metals rods. Material hardness
should be under RC35.
Capacity Cutting Capacity @ Tensile strength Dimensions (mm) Oil Capacity Weight
Model No (Tonne) (1000N/mm² {100kgf/mm²}) A B (cmᶟ) (kg)
RC20SW 20 Max. 18 Ø 348 22 73 17.5
The above remote cutting head and crimping heads (such as an EP-431H) can be mounted to a bench for mass
production of railway dropper leads.
SF
CAN PROVIDE
CUSTOM
SOLUTIONS,
CONTACT US
FOR MORE
DETAILS
