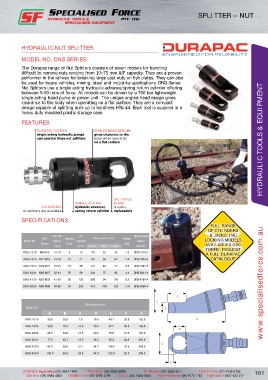

Page 111 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

SPLITTER – NUT – DURAPAC
SPLITTER – NUT

HYDRAULIC NUT SPLITTER

MODEL NO. DNS SERIES

The Durapac range of Nut splitters consists of seven models for handling
difficult to remove nuts ranging from 10–75 mm A/F capacity. They are a proven
performer in the railway for breaking large cast nuts on fish plates. They can also
be used for heavy vehicles, mining, steel and industrial applications. DNs-series
Nut splitters use a single acting hydraulic-advance/spring return cylinder offering
between 5-90 tons of force. All models can be driven by a 700 bar lightweight
single acting hand pump or power unit. The unique angled-head design gives
clearance to the body when operating on a flat surface. They are a compact
design capable of splitting nuts up to hardness HRc 44. Each tool is supplied in a
heavy duty moulded plastic storage case.

FEATURES

DURAPAC 700 BAR ANGLED HEAD DESIGN
single acting hydraulic pumps gives clearance to the
can operate these nut splitters body when operated HYDRAULIC TOOLS & EQUIPMENT
on a flat surface

SPLITTING
SINGLE ACTING BLADE
SIX MODELS hydraulic advance/ is easily
of splitters are available spring return cylinder replaceable
SPECIFICATIONS
FULL RANGE
OF CYLINDERS
Hex Nut Oil spare Blade & JACKS, INC
Bolt Capacity Dimensions (mm) Weight LOCKING MODELS
Model No. Range Capacity Model
Range (ton) (kg) AVAILABLE 5-500
(mm) (cm3) Length Width Height Number
TONNE, REQUEST
DNS-1319 M6-M12 10-19 5 13 170 40 48 1.2 DNs-1319-4
A FULL DURAPAC
DNS-1924 M12-M16 19-24 10 21 191 54 62 2.0 DNs-1924-4 CATALOGUE
DNS-2432 M16-M22 24-32 15 58 222 64 72 3.0 DNs-2432-4
DNS-3241 M22-M27 32-41 20 88 244 75 88 4.4 DNs-3241-4
DNS-4150 M27-M33 41-50 35 153 288 94 105 8.2 DNs-4150-4
DNS-5060 M33-M39 50-60 50 233 318 106 128 11.8 DNs-5060-4 www.specialisedforce.com.au

Dimensions (mm)
Model No.
A B C D E F G
DNS-1319 39.8 20.9 7.0 19.0 49.7 29.0 120.0
DNS-1924 53.8 25.3 10.0 25.0 62.2 40.0 146.0
DNS-2432 64.0 33.6 13.0 30.0 76.5 51.8 181.0
DNS-3241 77.0 42.7 16.0 36.0 87.3 64.9 205.0
DNS-4150 94.0 53.8 21.1 44.7 108.0 76.0 244.0
DNS-5060 106.0 60.8 24.3 54.3 125.3 92.0 289.0
