PUMP – HYDRAULIC, PETROL – HIGH PRESSURE – DURAPAC
PUMP – HYDRAULIC, PETROL –
HIGH PRESSURE

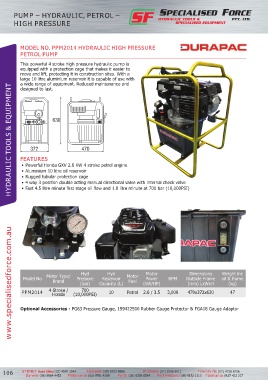

MODEL NO. PPM2014 HYDRAULIC HIGH PRESSURE
PETROL PUMP

This powerful 4 stroke high pressure hydraulic pump is
equipped with a protection cage that makes it easier to
move and lift, protecting it in construction sites. With a
large 10 litre aluminium reservoir it is capable of use with
a wide range of equipment. Reduced maintenance and
HYDRAULIC TOOLS & EQUIPMENT
designed to last.

FEATURES
• Powerful Honda GXV 2.6 KW 4 stroke petrol engine
• Aluminium 10 litre oil reservoir
• Rugged tubular protection cage
• 4 way 3 position double acting manual directional valve with internal check valve
• Fast 4.5 litre minute first stage oil flow and 1.8 litre minute at 700 bar (10,000PSI)

www.specialisedforce.com.au

Motor Type/ Hyd Hyd Motor Motor Dimensions Weight inc
Model No Brand Pressure Reservoir Fuel Power RPM Outside Frame oil & frame
(bar) Capacity (L) (kW/HP) (mm) LxWxH (kg)
700
PPM2014 4-Stroke / (10,000PSI) 10 Petrol 2.6 / 3.5 3,000 470x372x630 47
Honda

Optional Accessories - PG63 Pressure Gauge, 199422500 Rubber Gauge Protector & FGA18 Gauge Adaptor
