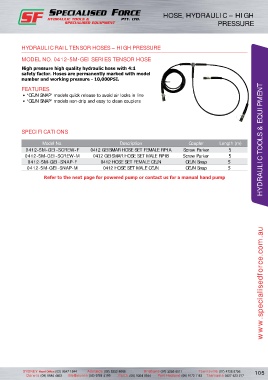

Page 115 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

HOSE, HYDRAULIC – HIGH PRESSURE
HOSE, HYDRAULIC – HIGH
PRESSURE

HYDRAULIC RAIL TENSOR HOSES – HIGH PRESSURE

MODEL NO. 0412-5M-GEI SERIES TENSOR HOSE

High pressure high quality hydraulic hose with 4:1
safety factor. Hoses are permanently marked with model
number and working pressure - 10,000PSI.

FEATURES
• “CEJN sNAP” models quick release to avoid air locks in line
• “CEJN sNAP” models non-drip and easy to clean couplers

SPECIFICATIONS

Model No. Description Coupler Length (m) HYDRAULIC TOOLS & EQUIPMENT
0412-5M-GEI-SCREW-F 0412 GEIsMAR HOsE sET FEMALE RP1A screw Parker 5
0412-5M-GEI-SCREW-M 0412 GEIsMAR HOsE sET MALE RP1B Screw Parker 5
0412-5M-GEI-SNAP-F 0412 HOsE sET FEMALE CEJN CEJN snap 5
0412-5M-GEI-SNAP-M 0412 HOsE sET MALE CEJN CEJN snap 5
Refer to the next page for powered pump or contact us for a manual hand pump
