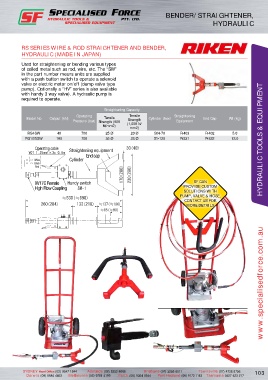

Page 113 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

BENDER/STRAIGHTENER, HYDRAULIC – RIKEN
BENDER/STRAIGHTENER,
HYDRAULIC

RS SERIES WIRE & ROD STRAIGHTENER AND BENDER,
HYDRAULIC (MADE IN JAPAN)

Used for straightening or bending various types
of coiled metal such as rod, wire, etc. The “sW”
in the part number means units are supplied
with a push button switch to operate a solenoid
valve or electric motor on/off (dump valve type
pump). Optionally a “Hv” series is also available
with handy 3 way valve). A hydraulic pump is
required to operate.

straightening Capacity
Operating Tensile straightening
Model No Output (kN) Tensile strength Cylinder Used End Cap Wt (kg)
Pressure (bar) strength (500 Equipment
N/mm2) (1,000 N/
mm2)
RS4SW 40 700 25 Ø 20 Ø s04-70 R-403 R-402 5.0
RS10BSW 100 700 36 Ø 28 Ø s1-120 R-331 R-332 12.0 HYDRAULIC TOOLS & EQUIPMENT

SF CAN
PROVIDE CUSTOM
SOLUTIONS WITH
PUMP, VALVE & HOSE,
CONTACT US FOR
MORE DETAILS www.specialisedforce.com.au
