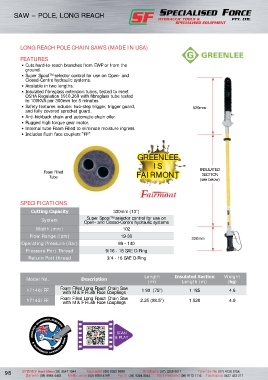

Page 108 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

SAW – POLE, LONG REACH – GREENLEE
SAW – POLE, LONG REACH

LONG REACH POLE CHAIN SAWS (MADE IN USA)

FEATURES
• Cuts hard-to-reach branches from EWP or from the
ground.
• super spool™ selector control for use on Open- and
Closed-Centre hydraulic systems.
• Available in two lengths.
• Insulated fibreglass extension tubes, tested to meet
OSHA Regulation 1910.269 with fibreglass tube tested
to 100kvA per 300mm for 5 minutes
• safety features include: two-step trigger, trigger guard, 520mm
and fully covered sprocket guard.
• Anti-kickback chain and automatic chain oiler.
• Rugged high torque gear motor.
• Internal tube Foam Filled to eliminate moisture ingress.
• Includes flush face couplers “FF”

GREENLEE
IS

Foam Filled INsULATED
Tube FAIRMONT sECTION
(see below)

SPECIFICATIONS

Cutting Capacity 330mm (13”)
super spool™ selector control for use on
System Open- and Closed-Centre hydraulic systems
Width (mm) 102
Flow Range (lpm) 19-30 220mm
Operating Pressure (Bar) 69 - 140
Pressure Port Thread 9/16 - 18 sAE O-Ring
Return Port thread 3/4 - 16 sAE O-Ring

Model No. Description Length Insulated Section Weight
Length (m)
(m)
(kg)
17140/FF Foam Filled Long Reach Chain saw 1.90 (75”) 1.185 4.6
with M & F Flush Face Couplings
17142/FF Foam Filled Long Reach Chain saw 2.25 (88.5”) 1.528 4.9
with M & F Flush Face Couplings
