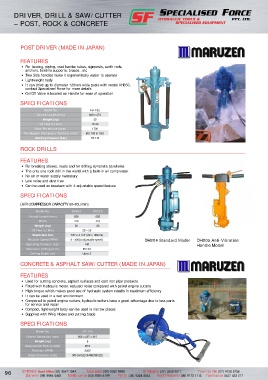

Page 106 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

DRIVER, DRILL & SAW/CUTTER – POST, ROCK & CONCRETE –
MARUZEN
DRIVER, DRILL & SAW/CUTTER
– POST, ROCK & CONCRETE

POST DRIVER (MADE IN JAPAN)

FEATURES
• For fencing, piping, road barrier tubes, signposts, earth rods,
anchors, tendrils supports, braces...etc
• Two side handles make it ergonomically easier to operate
• Lightweight body
• It can drive up to diameter 120mm wide posts with model kH650,
contact specialised Force for more details
• On/Off valve is located on Handle for ease of operation

SPECIFICATIONS
Model No. KH-182
Overall Length (mm) 600 x 273
Weight (kg) 23
Oil Flow (L/min) 18-22
Blow Per Minute (bpm) 1700
The Biggest Diameters {Options} (mm) 80 {100 & 120}
Working Pressure (bar) 78-118
ROCK DRILLS

FEATURES
• For breaking stones, roads and for drilling dynamite boreholes
• The only one rock drill in the world with a built-in air compressor
• No air or water supply necessary
• Low noise and dust free
• Can be used as breakers with 4 adjustable speed feature
SPECIFICATIONS

(AIR COMPREssOR CAPACITY 50-80L/min)
Model No. DH204 DH205
Overall Length (mm) 626 692
Width 412 410
Weight (kg) 20 22
Oil Flow (L/Min) 20 – 25
Shank Size Hex 7/8” x 4 1/4” (22 x 108mm)
Rotation Speed (RPM) 0 - 400(4 adjustable speed) DH204 Standard Model DH205 Anti-Vibration
Operating Pressure (bar) 140 Handle Model
Maximum Drilling (mm) 65 DIA
Drilling Depth (m) Up to 3
CONCRETE & ASPHALT SAW/CUTTER (MADE IN JAPAN)

FEATURES
• Used for cutting concrete, asphalt surfaces and cast iron pipe products
• Fitted with hydraulic motor, reduced noise compared with petrol engine cutters
• High torque which makes good use of hydraulic system results in maximum efficiency
• It can be used in a wet environment
• Compared to petrol engine cutters, hydraulic cutters have a great advantage due to less parts
for service and repair
• Compact, lightweight body can be used in narrow places
• supplied with Whip Hoses and cutting blade

SPECIFICATIONS
Model No. CH-130
Overall Dimension (mm) 602 x 207 x 315
Weight (kg) 8
Required Oil Flow (L/Min) 20.5
Rotation (RPM) 3200
Blade Diameter (mm) 305 (HOLE DIAMETER 22)
