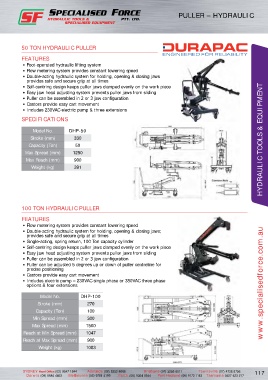

Page 127 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

PULLER – HYDRAULIC – DURAPAC
PULLER – HYDRAULIC

50 TON HYDRAULIC PULLER

FEATURES
• Foot-operated hydraulic lifting system
• Flow metering system provides constant lowering speed
• Double-acting hydraulic system for holding, opening & closing jaws
provides safe and secure grip at all times
• self-centring design keeps puller jaws clamped evenly on the work piece
• Easy jaw head adjusting system prevents puller jaws from sliding
• Puller can be assembled in 2 or 3 jaw configuration
• Castors provide easy cart movement
• Includes 230vAC electric pump & three extensions
SPECIFICATIONS

Model No. DHP-50
stroke (mm) 330 HYDRAULIC TOOLS & EQUIPMENT
Capacity (Ton) 50
Max spread (mm) 1250
Max Reach (mm) 900

Weight (kg) 391

100 TON HYDRAULIC PULLER

FEATURES
• Flow metering system provides constant lowering speed
• Double-acting hydraulic system for holding, opening & closing jaws;
provides safe and secure grip at all times
• single-acting, spring return, 100 Ton capacity cylinder
• self-centring design keeps puller jaws clamped evenly on the work piece
• Easy jaw head adjusting system prevents puller jaws from sliding
• Puller can be assembled in 2 or 3 jaw configuration
• Puller can be adjusted 5 degrees up or down of puller centreline for
precise positioning
• Castors provide easy cart movement
• Includes electric pump – 230vAC single phase or 380vAC three phase
options & four extensions www.specialisedforce.com.au

Model No. DHP-100
stroke (mm) 270
Capacity (Ton) 100
Min spread (mm) 300
Max spread (mm) 1500
Reach at Min spread (mm) 1047
Reach at Max spread (mm) 900
Weight (kg) 1083
