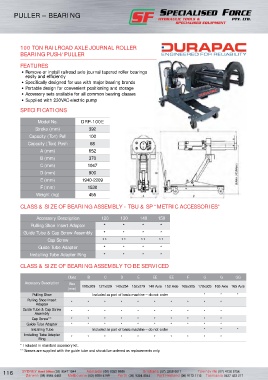

Page 126 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

PULLER – BEARING – DURAPAC
PULLER – BEARING

100 TON RAILROAD AXLE JOURNAL ROLLER
BEARING PUSH/PULLER

FEATURES
• Remove or install railroad axle journal tapered roller bearings
easily and efficiently
• Specifically designed for use with major bearing brands
• Portable design for convenient positioning and storage
• Accessory sets available for all common bearing classes
• supplied with 230vAC electric pump

SPECIFICATIONS

Model No. DRP-100E
stroke (mm) 392
Capacity (Ton) Pull 100
Capacity (Ton) Push 68
A (mm) 652
B (mm) 370
C (mm) 1047
D (mm) 900
E (mm) 1940-2209
F (mm) 1530
Weight (kg) 455

CLASS & SIZE OF BEARING ASSEMBLY - TBU & SP “METRIC ACCESSORIES”

Accessory Description 120 130 140 150
Pulling shoe Insert Adaptor * * * *
Guide Tube & Cap screw Assembly * * * *
Cap screw ** ** ** **
Guide Tube Adapter * * * *
Installing Tube Adapter Ring * * * *

CLASS & SIZE OF BEARING ASSEMBLY TO BE SERVICED

Class B C D E EE EE F G G GG
Accessory Description size
(mm) 108x203 127x229 140x254 152x279 140 Axle 152 Axle 165x305 178x305 165 Axle 165 Axle
Pulling shoe Included as part of basic machine – do not order * * *
Pulling shoe Insert
Adaptor * * * * * * * * * *
Guide Tube & Cap screw * * * * * * * * * *
Assembly
Cap screw** * * * * * * * * * *
Guide Tube Adapter * * * * * * * * * *
Installing Tube Included as part of basic machine – do not order * * *
Installing Tube Adapter
Ring * * * * * * * * * *
* Included in standard accessory kit.
**screws are supplied with the guide tube and should be ordered as replacements only.
