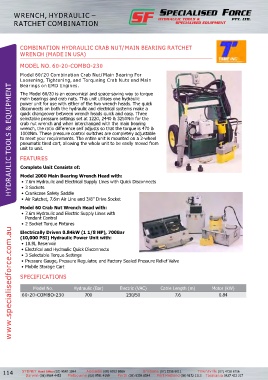

Page 124 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

WRENCH, HYDRAULIC – RATCHET COMBINATION – TAME
WRENCH, HYDRAULIC –
RATCHET COMBINATION

COMBINATION HYDRAULIC CRAB NUT/MAIN BEARING RATCHET
WRENCH (MADE IN USA)

MODEL NO. 60-20-COMBO-230

Model 60/20 Combination Crab Nut/Main Bearing For
Loosening, Tightening, and Torqueing Crab Nuts and Main
Bearings on EMD Engines.
HYDRAULIC TOOLS & EQUIPMENT
The Model 60/20 is an economical and space-saving way to torque
main bearings and crab nuts. This unit utilises one hydraulic
power unit for use with either of the two wrench heads. The quick
disconnects on both the hydraulic and electrical systems make a
quick changeover between wrench heads quick and easy. Three
selectable pressure settings set at 1220, 2440 & 3250Nm for the
crab nut wrench and when interchanged with the main bearing
wrench, the ratio difference self adjusts so that the torque is 470 &
1000Nm. These pressure control switches are completely adjustable
to meet your requirements. The entire unit is mounted on a 2-wheel
pneumatic tired cart, allowing the whole unit to be easily moved from
unit to unit.

FEATURES

Complete Unit Consists of:
Model 2000 Main Bearing Wrench Head with:
• 7.6m Hydraulic and Electrical Supply Lines with Quick Disconnects
• 3 Sockets
• Crankcase Safety Saddle
• Air Ratchet, 7.6m Air Line and 3/8” Drive Socket

Model 60 Crab Nut Wrench Head with:
• 7.6m Hydraulic and Electric Supply Lines with
Pendant Control
• 2 Socket Torque Fixtures
www.specialisedforce.com.au
Electrically Driven 0.84kW (1 1/8 HP), 700Bar
(10,000 PSI) Hydraulic Power Unit with:
• 18.9L Reservoir
• Electrical and Hydraulic Quick Disconnects
• 3 Selectable Torque Settings
• Pressure Gauge, Pressure Regulator, and Factory Sealed Pressure Relief Valve
• Mobile Storage Cart

SPECIFICATIONS

Model No. Hydraulic (Bar) Electric (VAC) Cable Length (m) Motor (kW)
60-20-COMBO-230 700 230/50 7.6 0.84
