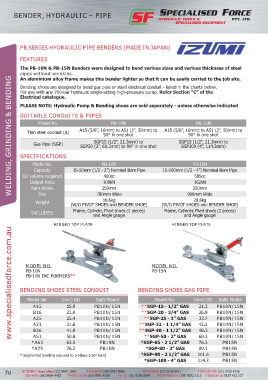

Page 80 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

BENDER, HYDRAULIC – PIPE – IZUMI
BENDER, HYDRAULIC – PIPE

PB SERIES HYDRAULIC PIPE BENDERS (MADE IN JAPAN)

FEATURES

The PB-10N & PB-15N Benders were designed to bend various sizes and various thickness of steel
pipes without wrinkles.
WELDING, GRINDING & BENDING
An aluminium alloy frame makes this bender lighter so that it can be easily carried to the job site.
Bending shoes are designed to bend gas pipe or steel electrical conduit - listed in the charts below.
For use with any 700-bar hydraulic single-acting high-pressure pump. Refer Section “C” of the
Electrical catalogue.
PLEASE NOTE: Hydraulic Pump & Bending shoes are sold separately - unless otherwise indicated

SUITABLE CoNDUITS & PIPES
model No. PB-10N PB-15N

Thin steel conduit (A) A15 (5/8”, 16mm) to A51 (2”, 50mm) to A15 (5/8”, 16mm) to A51 (2”, 50mm) to
90° in one shot
90° in one shot
SGP15 (1/2”, 21.3mm) to
Gas Pipe (SGP) SGP50 (2”, 60.3mm) to 90° in one shot SGP15 (1/2”, 21.3mm) to
SGP100 (4”, 114.3mm)
SPECIFICATIoNS

model No. PB-10N PB-15N
Capacity 15-50mm (1/2 - 2”) Nominal Bore Pipe 15-100mm (1/2 - 4”) Nominal Bore Pipe
oil volume required 400cc 595cc
output force 108kN 162kN
Ram stroke 250mm 250mm
Size 780mm Wide 900mm Wide
18.6kg
28.8kg
Weight (W/o PIVoT SHoES and BENDER SHoE) (W/o PIVoT SHoES and BENDER SHoE)
INCLUDES: Frame, Cylinder, Pivot shoes (2 pieces) Frame, Cylinder, Pivot shoes (2 pieces)
and Angle gauge
and Angle gauge
HINGED ToP PLATE HINGED ToP PLATE
www.specialisedforce.com.au

MoDEL No. MoDEL No.
PB-10N PB-15N
PB-10N INC FoRmERS**

BENDING SHoES STEEL CoNDUIT BENDING SHoES GAS PIPE

model No. (mm) oD Suits model model No. (mm) oD Suits model
A15 15.9 PB10N/15N **SGP-15 - 1/2” GAS 21.3 PB10N/15N
B16 21.0 PB10N/15N **SGP-20 - 3/4” GAS 26.9 PB10N/15N
A25 25.4 PB10N/15N **SGP-25 - 1” GAS 33.7 PB10N/15N
A31 31.8 PB10N/15N **SGP-32 - 1 1/4” GAS 42.2 PB10N/15N
B36 41.9 PB10N/15N **SGP-40 - 1 1/2” GAS 48.3 PB10N/15N
A51 50.8 PB10N/15N **SGP-50 - 2” GAS 60.3 PB10N/15N
*A63 63.5 PB15N *SGP-65 - 2 1/2” GAS 76.3 PB15N
*A75 76.2 PB15N *SGP-80 - 3” GAS 89.1 PB15N
* Segmented bending required to produce a 90° bend *SGP-90 - 3 1/2” GAS 101.6 PB15N
*SGP-100 - 4” GAS 114.3 PB15N
