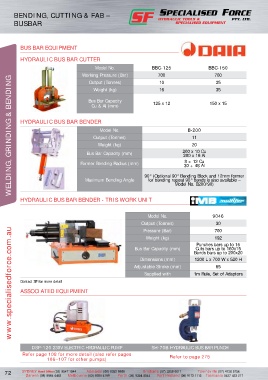

Page 82 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

BENDING, CUTTING & FAB – BUSBAR – DAIA – IMB
BENDING, CUTTING & FAB –
BUSBAR

BUS BAR EQUIPMENT

HYDRAULIC BUS BAR CUTTER

Model No. BBC-125 BBC-150
Working Pressure (Bar) 700 700
WELDING, GRINDING & BENDING
Output (Tonnes) 10 35
Weight (kg) 16 35

Bus Bar Capacity 125 x 12 150 x 15
Cu & Al (mm)

HYDRAULIC BUS BAR BENDER
Model No. B-200
Output (Tonnes) 11
Weight (kg) 20

Bus Bar Capacity (mm) 200 x 10 Cu
200 x 16 Al
8 + 12 Cu
Former Bending Radius (mm) 30 + 48 Al

90° (Optional 90° Bending Block and 12mm former
Maximum Bending Angle for bending repeat 90° bends is also available –
Model No. B200/90)

HYDRAULIC BUS BAR BENDER - TRIS WORK UNIT

Model No. 9046
Output (Tonnes) 30
www.specialisedforce.com.au
Pressure (Bar) 700
Weight (kg) 192
Punches bars up to 15
Bus Bar Capacity (mm) Cuts bars up to 160x15
Bends bars up to 200x20
Dimensions (mm) 1200 L x 700 W x 520 H
Adjustable stroke (mm) 65

supplied with 1m Rule, set of Adaptors
Contact sF for more detail

ASSOCIATED EQUIPMENT

DSP-120 230v ELECTRIC HYDRAULIC PUMP SH-70B HYDRAULIC BUs BAR PUNCH
Refer page 108 for more detail (also refer pages
106–107 for other pumps) Refer to page 275
