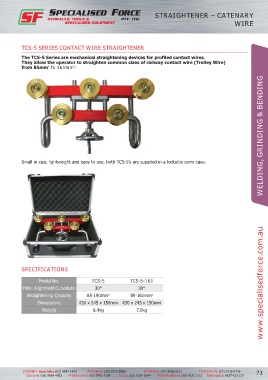

Page 83 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18
P. 83
STRAIGHTENER – CATENARY WIRE
STRAIGHTENER – CATENARY
WIRE
TCS-5 SERIES CONTACT WIRE STRAIGHTENER
The TCS-5 Series are mechanical straightening devices for profiled contact wires.
They allow the operator to straighten common sizes of railway contact wire (Trolley Wire)
from 85mm to 161mm .
2
2
Small in size, lightweight and easy to use, both TCS-5’s are supplied in a lockable carry case. WELDING, GRINDING & BENDING
SPECIFICATIONS
Model No. TCS-5 TCS-5-161 www.specialisedforce.com.au
Max. Alignment Curvature 30° 30°
Straightening Capacity 85-150mm 2 85-161mm 2
Dimensions 430 x 245 x 150mm 430 x 245 x 150mm
Weight 6.4kg 7.0kg
