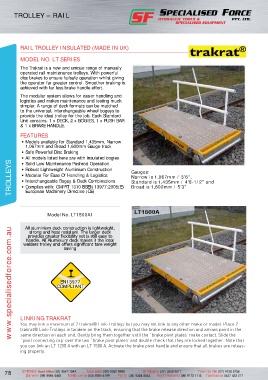

Page 88 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

TROLLEY – RAIL – TRAKRAT
TROLLEY – RAIL

RAIL TROLLEY INSULATED (MADE IN UK)

MODEL NO. LT SERIES

The Trakrat is a new and unique range of manually
operated rail maintenance trolleys. With powerful
disc brakes to ensure failsafe operation whilst giving
the operator far greater control. smoother braking is
achieved with far less brake handle effort.
The modular system allows for easier handling and
logistics and makes maintenance and testing much
simpler. A range of deck formats can be matched
to the universal, interchangeable wheel bogeys to
provide the ideal trolley for the job. Each standard
Unit contains: 1 x DECk, 2 x BOGIEs, 1 x PUsH BAR
& 1 x BRAkE HANDLE.
FEATURES
• Models available for standard 1,435mm, Narrow
1,067mm and Broad 1,600mm Gauge track
• safe Powerful Disc Braking
• All models listed here are with insulated bogies
TROLLEYS • Robust Lightweight Aluminium Construction Gauges:
• solid Low Maintenance Pushrod Operation

• Modular For Ease Of Handling & Logistics
Narrow is 1,067mm / 3’6”,
• Interchangeable Bogey & Deck Combinations
Standard is 1,435mm / 4’8-1/2” and
Broad is 1,600mm / 5’3”
• Complies with: GM/RT 1310 BsEN 13977:2005(E)
European Machinery Directive (CE)

Model No. LT1500AI

All aluminium deck construction is lightweight,
www.specialisedforce.com.au
strong and heat resistant. The larger deck
provides greater flexibility yet is still easy to
handle. All Aluminium deck makes it the ideal
welders trolley and offers significant tare weight
saving

EN13977
COMPLIANT

LINKING TRAKRAT
You may link a maximum of 2 trakrat® Link-Trolleys but you may not link to any other make or model. Place 2
trakrat® Link-Trolleys in tandem on the track, ensuring that the brake release direction and arrows point in the
same direction on each unit. Gently bring them together until the `brake pivot plates’ make contact. Slide the
`pivot connecting cap’ over the two `brake pivot plates’ and double check that they are locked together. Note that
you can link an LT 1250 A with an LT 1500 A. Activate the brake pivot handle and ensure that all brakes are releas-
ing properly.
