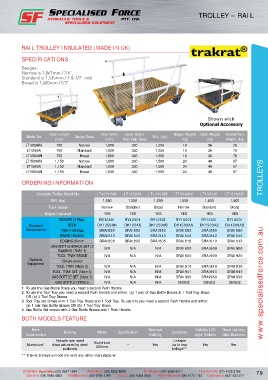

Page 89 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

INDEX TEST PAGE 1
TROLLEY – RAIL

RAIL TROLLEY INSULATED (MADE IN UK)

SPECIFICATIONS

Gauges:
Narrow is 1,067mm / 3’6”,
Standard is 1,435mm / 4’8-1/2” and
Broad is 1,600mm / 5’3”

Shown with
Optional Accessory
Deck Length Deck Width Deck Height Bogey Weight Deck Weight Overall Tare
Model No. Gauge sizes WLL (kg)
(mm) (mm) from Rail Head (kg) (kg) Weight (kg)
LT1250ANI 750 Narrow 1,800 330 1,250 19 36 76
LT1250AI 750 standard 1,800 330 1,250 19 36 76
LT1250ABI 750 Broad 1,800 330 1,250 19 36 76
LT1500ANI 1,150 Narrow 1,800 330 1,500 24 49 97
LT1500AI 1,150 standard 1,800 330 1,500 24 49 97
LT1500ABI 1,150 Broad 1,800 330 1,500 24 49 97

ORDERING INFORMATION TROLLEYS

Complete Trolley Model No. LT1250ANI LT1250AI LT1250ABI LT1500ANI LT1500AI LT1250ABI
sWL (kg) 1,250 1,250 1,250 1,500 1,500 1,500
Track Gauge Narrow standard Broad Narrow standard Broad
Bogies Insulated YEs YEs YEs YEs YEs YEs
BOGIEs (2 Req) BY1250I BY1250I BY1250I BY1500I BY1500I BY1500I
standard DECk DK1250AN DK120AS DK1250AB DK1500AN DK1500AS DK1500AB
Components PUsH HANDLE SRAI550 SRAI550 SRAI550 SRAI550 SRAI550 SRAI550
BRAkE HANDLE SRAI540 SRAI540 SRAI540 SRAI542 SRAI542 SRAI542
EDGING 50mm SRAI808 SRAI800 SRAI805 SRAI818 SRAI810 SRAI815
GAs BOTTLE BRACE sET (2
supplied) (Note 1) N/A N/A N/A SRAI900 SRAI900 SRAI900
TOOL TRAY BRACE N/A N/A N/A SRAI920 SRAI920 SRAI920
Optional (single piece)
Equipment
TOOL TRAY (Note 2) N/A N/A N/A SRAI910 SRAI910 SRAI910
TOOL TRAY sET (Note 3) N/A N/A N/A SRAI941 SRAI941 SRAI941
GAs BOTTLE sET (Note 7) N/A N/A N/A SRAI950 SRAI950 SRAI950
GAs BOTTLE CRADLE N/A N/A N/A GBSC3 GBSC3 GBSC3 www.specialisedforce.com.au
1. To use the Gas Bottle Brace you need a second Push Handle
2. To use the Tool Tray you need a second Push Handle and either: (a) 1 pair of Gas Bottle Braces & 1 Tool Tray Brace
OR (b) 2 Tool Tray Braces
3. Tool Tray set comes with 1 Tool Tray Brace and 1 Tool Tray. To use this you need a second Push Handle and either:
(a) 1 pair Gas Bottle Braces OR (b) 1 Tool Tray Brace.
4. Gas Bottle set comes with 2 Gas Bottle Braces and 1 Push Handle.
BOTH MODELS FEATURE

Deck Braking Wheel Specification Electrical Linkability visibility LED Flood Lighting
Construction visibility Light Pockets Mast Brackets
Failsafe twin steel Linkable
Aluminium* discs actuated by steel Aluminium – Yes up to two Yes Yes
pushrods 200mm trolleys**
** Trakrat trolleys will not link with any other manufacturer
