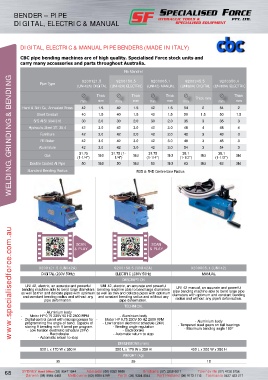

Page 78 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18
P. 78
BENDER – PIPE DIGITAL, ELECTRIC & MANUAL – CBC
BENDER – PIPE
DIGITAL, ELECTRIC & MANUAL
DIGITAL, ELECTRIC & MANUAL PIPE BENDERS (MADE IN ITALY)
CBC pipe bending machines are of high quality. Specialised Force stock units and
carry many accessories and parts throughout Australia.
No Mandrel
WELDING, GRINDING & BENDING
9200121.5 9200150.5 9200005.1 9200345.5 9200350.4
Pipe Type
(UNI42A) DIGITAL (UNI42A) ELECTRIC (UNI42) MANUAL (UNI60A) DIGITAL (UNI60A) ELECTRIC
Thick Thick Thick Thick mm Thick
mm mm mm mm mm mm mm mm mm
Hard & soft Cu, Annealed Brass 42 1.5 42 1.5 42 1.5 54 2 54 2
steel Conduit 40 1.5 40 1.5 40 1.5 50 1.5 50 1.5
s/s AIsI 304/316 30 2.0 30 2.0 30 2.0 35 3 35 3
Hydraulic steel sT. 35.4 42 3.0 42 3.0 42 3.0 48 4 48 4
Furniture 42 3.0 42 2.0 42 2.0 48 3 48 3
FE Boiler 42 3.0 42 3.0 42 3.0 48 3 48 3
Aluminium 42 3.0 42 3.0 42 3.0 54 3 54 3
31.75 31.75 (1- 31.75 38.1 38.1
Gas std std std std std
(1-1/4”) 1/4”) (1-1/4”) (1-1/2”) (1-1/2”)
Double Coated Al Pipe 50 std 50 std 50 std 63 std 63 std
standard Bending Radius R3D & R4D Centre Line Radius
www.specialisedforce.com.au
SCAN SCAN
& PLAY & PLAY
9200121.5 (UNI42A) 9200150.5 (UNI42A) 9200005.1 (UNI42)
DIGITAL (230v 50Hz) ELECTRIC (230v 50Hz) MANUAL
DEsCRIPTION
UNI 42, electric, an accurate and powerful UNI 42, electric, an accurate and powerful
bending machine able to bend large diameters bending machine able to bend large diameters UNI 42 manual, an accurate and powerful
pipe bending machine able to bend large pipe
as well as thin and delicate pipes with optimum as well as thin and delicate pipes with optimum diameters with optimum and constant bending
and constant bending radius and without any and constant bending radius and without any radius and without any pipe’s deformation.
pipe deformation. pipe deformation.
TECHNICAL
- Aluminium body
- Motor HP 0,75 230v 50 HZ 2800 RPM - Aluminium body
- Digital control panel with microprocessor for - Motor HP 0,75 230v 50 HZ 2800 RPM - Aluminium body
programming the angle of bend. Capable of - Low tension electronic schedule (24v) - Tempered steel gears on ball bearings
storing 9 bending with 9 bend per program. - Bending angle regulation - Maximum bending angle 180°
- Low tension electronic schedule (24v) - Electrobrake
- Electrobrake - Automatic return to stop
- Automatic return to stop
DIMENsIONs (mm)
520 L x 170 W x 350 H 520 L x 170 W x 350 H 400 L x 200 W x 250 H
WEIGHT (kg)
35 35 18
