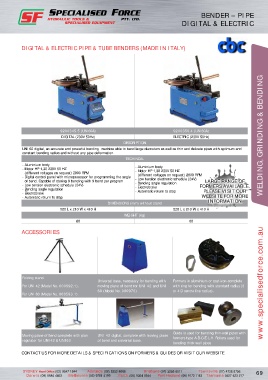

Page 79 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18
P. 79
BENDER – PIPE DIGITAL & ELECTRIC – CBC
BENDER – PIPE
DIGITAL & ELECTRIC
DIGITAL & ELECTRIC PIPE & TUBE BENDERS (MADE IN ITALY)
9200345.5 (UNI60A) 9200350.4 (UNI60A)
DIGITAL (230v 50Hz) ELECTRIC (230v 50Hz) WELDING, GRINDING & BENDING
DEsCRIPTION
UNI 60 digital, an accurate and powerful bending machine able to bend large diameters as well as thin and delicate pipes with optimum and
constant bending radius and without any pipe deformation.
TECHINCAL
- Aluminium body - Aluminium body
- Motor HP 1,30 230v 50 HZ - Motor HP 1,30 230v 50 HZ
(different voltages on request) 2800 RPM (different voltages on request) 2800 RPM
- Digital control panel with microprocessor for programming the angle - Low tension electronic schedule (24v)
of bend. Capable of storing 9 bending with 9 bend per program - Bending angle regulation LARGE RANGE OF
- Low tension electronic schedule (24v) - Electrobrake FORMERS AVAILABLE.
- Bending angle regulation - Automatic return to stop PLEASE VISIT OUR
- Electrobrake
- Automatic return to stop WEBSITE FOR MORE
DIMENsIONs (mm) without stand INFORMATION
520 L x 210 W x 410 H 520 L x 210 W x 410 H
WEIGHT (kg)
60 60
ACCESSORIES
Folding stand.
Universal base, necessary for bending with Formers in aluminium or cast-iron complete
For UNI 42 (Model No. 000592.1). moving plane of bend for UNI 42 and UNI with ring for bending with standard radius (3 www.specialisedforce.com.au
60 (Model No. 000970) or 4 D centre line radius).
For UNI 60 (Model No. 000593.1).
Guide is used for bending thin-wall pipes with
Moving plane of bend complete with plan UNI 42 digital, complete with moving plane formers type A-B-C-E-L-H. Rollers used for
regulator for UNI42 & UNI60 of bend and universal base.
bending thick wall pipes
CONTACT US FOR MORE DETAILS & SPECIFICATIONS ON FORMERS & GUIDES OR VISIT OUR WEBSITE
