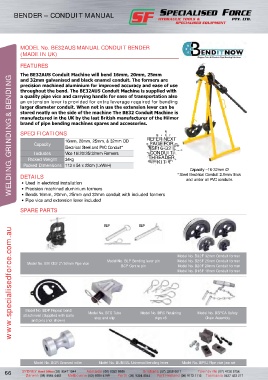

Page 76 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

BENDER – CONDUIT MANUAL – BENDITNOW
BENDER – CONDUIT MANUAL

MODEL No. BE32AUS MANUAL CONDUIT BENDER
(MADE IN UK)

FEATURES

The BE32AUS Conduit Machine will bend 16mm, 20mm, 25mm
WELDING, GRINDING & BENDING
and 32mm galvanised and black enamel conduit. The formers are
precision machined aluminium for improved accuracy and ease of use
throughout the bend. The BE32AUS Conduit Machine is supplied with
a quality pipe vice and carrying handle for ease of transportation also
an extension lever is provided for extra leverage required for bending
larger diameter conduit. When not in use the extension lever can be
stored neatly on the side of the machine The BE32 Conduit Machine is
manufactured in the UK by the last British manufacturer of the Hilmor
brand of pipe bending machines spares and accessories.

SPECIFICATIONS
16mm, 20mm, 25mm, & 32mm OD REFER NEXT
Capacity PAGE FOR
Electrical steel and PvC Conduit* SF16-32
Includes vice 16/20/25/32mm Formers. CONDUIT
Packed Weight 34kg THREADER
KIT
Packed Dimensions 113 x 54 x 22cm (LxWxH)
Capacity –16-32mm Ø
DETAILS *steel Electrical Conduit 2.0mm thick
and under all PvC conduits
• Used in electrical installation
• Precision machined aluminium formers
• Bends 16mm, 20mm, 25mm and 32mm conduit with included formers
• Pipe vice and extension lever included

SPARE PARTS

BLP BLP
www.specialisedforce.com.au

Model No. B32F 32mm Conduit former
Model No. BLP Bending lever pin Model No. B25F 25mm Conduit former
Model No. BVICE2 2”/50mm Pipe vice
BCP Centre pin Model No. B20F 20mm Conduit former
Model No. B16F 16mm Conduit former

Model No. BDP Repeat bend
attachment (supplied with bolts Model No. BTS Tube Model No. BRC Retaining Model No. BSPCA safety
and pins (not shown) stop and clip clips x5 Chain Assembly

Model No. BGR Grooved roller Model No. BUNIBL Universal bending lever Model No. BPVJ Pipe vice jaw set
