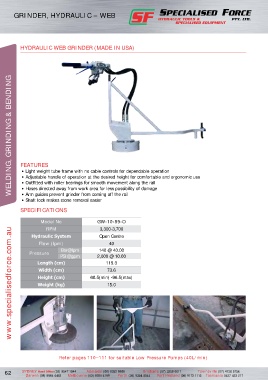

Page 72 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18
P. 72
GRINDER, HYDRAULIC – WEB
GRINDER, HYDRAULIC – WEB
HYDRAULIC WEB GRINDER (MADE IN USA)
WELDING, GRINDING & BENDING
FEATURES
• Light weight tube frame with no cable controls for dependable operation
• Adjustable handle of operation at the desired height for comfortable and ergonomic use
• Outfitted with roller bearings for smooth movement along the rail
• Hoses directed away from work area for less possibility of damage
• Arm guides prevent grinder from coming off the rail
• shaft lock makes stone removal easier
SPECIFICATIONS
Model No GW-10-89-O
RPM 3,300-3,700
www.specialisedforce.com.au
Hydraulic System Open Centre
Flow (lpm) 40
Bar@lpm 140 @ 40.00
Pressure
PsI@gpm 2,000 @ 10.00
Length (cm) 119.3
Width (cm) 73.6
Height (cm) 68.5(min) -96.5(max)
Weight (kg) 15.0
Refer pages 110–111 for suitable Low Pressure Pumps (40L/min)
