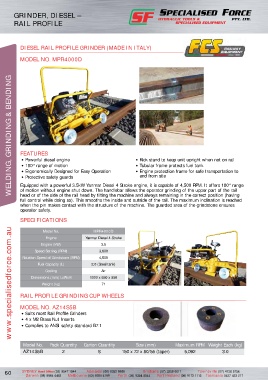

Page 70 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

GRINDER, DIESEL – RAIL PROFILE – FCS
GRINDER, DIESEL –
RAIL PROFILE

DIESEL RAIL PROFILE GRINDER (MADE IN ITALY)

MODEL NO. MPR4000D

WELDING, GRINDING & BENDING

FEATURES
• Powerful diesel engine • kick stand to keep unit upright when not on rail
• 180° range of motion • Tubular frame protects fuel tank
• Ergonomically Designed for Easy Operation • Engine protection frame for safe transportation to
• Protective safety guards and from site
Equipped with a powerful 3.5kW Yanmar Diesel 4 stroke engine, it is capable of 4,500 RPM. It offers 180° range
of motion without engine shut down. The handlebar allows the operator grinding of the upper part of the rail
head or of the side of the rail head by tilting the machine and always remaining in the correct position (having
full control while doing so). This smooths the inside and outside of the rail. The maximum inclination is reached
when the pin makes contact with the structure of the machine. The guarded area of the grindstone ensures
operator safety.

SPECIFICATIONS

www.specialisedforce.com.au
Model No. MPR4000D
Engine Yanmar Diesel 4 stroke
Engine (kW) 3.5
speed setting (RPM) 3,600
Rotation speed of Grindstone (RPM) 4,500
Fuel Capacity (L) 2.0 (steel tank)
Cooling Air
Dimensions (mm) LxWxH 1000 x 650 x 950
Weight (kg) 71

RAIL PROFILE GRINDING CUP WHEELS

MODEL NO. AZ14S5B
• Suits most Rail Profile Grinders
• 4 x M8 Brass Nut Inserts
• Complies to ANsI safety standard B7.1

Model No. Pack quantity Carton quantity size (mm) Maximum RPM Weight Each (kg)
AZ14S5B 2 8 150 x 72 x 80/55 (taper) 5,092 3.0
