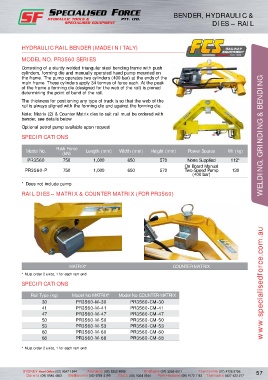

Page 67 - SF RAIL CAT_V2.0_WEB_F2-UPDATE-02-11-18

BENDER, HYDRAULIC & DIES – RAIL – FCS
BENDER, HYDRAULIC &
DIES – RAIL

HYDRAULIC RAIL BENDER (MADE IN ITALY)

MODEL NO. PR3560 SERIES

Consisting of a sturdy welded triangular steel bending frame with push
cylinders, forming die and manually operated hand pump mounted on
the frame. The pump operates two cylinders (400 bar) at the ends of the
main frame. These cylinders apply 34 tonnes of force each. At the peak
of the frame a forming die (designed for the web of the rail) is pinned
determining the point of bend of the rail.
The thickness for positioning any type of track is so that the web of the
rail is always aligned with the forming die and against the forming die.

Note: Matrix (2) & Counter Matrix dies to suit rail must be ordered with
bender, see details below
Optional petrol pump available upon request

SPECIFICATIONS WELDING, GRINDING & BENDING

Push Force
Model No. Length (mm) Width (mm) Height (mm) Power source Wt (kg)
(kN)
PR3560 750 1,000 650 570 None supplied 112*
On Board Manual
PR3560-P 750 1,000 650 570 Two-speed Pump 130
(400 bar)

* Does not include pump

RAIL DIES – MATRIX & COUNTER MATRIX (FOR PR3560)

MATRIX* COUNTER-MATRIX
* Must order 2 units, 1 for each ram end

SPECIFICATIONS www.specialisedforce.com.au

Rail Type (kg) Model No MATRIX* Model No COUNTER-MATRIX
30 PR3560-M-30 PR3560-CM-30
41 PR3560-M-41 PR3560-CM-41
47 PR3560-M-47 PR3560-CM-47
50 PR3560-M-50 PR3560-CM-50
53 PR3560-M-53 PR3560-CM-53
60 PR3560-M-60 PR3560-CM-60
68 PR3560-M-68 PR3560-CM-68

* Must order 2 units, 1 for each ram end
